Gaffey Hyprolyser iSEC Skid-II 90 g/h Electro-Chlorination System (240V)

Gaffey Hyprolyser iSEC Skid-II 90 g/h Electro-Chlorination System (240V)

Product Code: GAF-204-312

The industry leading iSEC® HYPROLYSER® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution.

$31,878.00 Excl. GST
$35,065.80 Incl. GST
Enquire about availability
Vendor: Gaffey

Unavailable

KEY FEATURES
  • Reliable and cost-effective system for onsite production of sodium hypochlorite
  • Skid systems are a complete package for simple and quick installation
  • Supplied pre-built and tested including softener, salt saturator and chlorine product storage tank



 

The industry leading HYPROLYSER® iSEC® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution.

The iSEC® system automatically draws a concentrated brine solution from a salt saturator which is then diluted to the correct strength with softened water for efficient electrolysis. The diluted brine is automatically fed to the electrolytic cell where electric current is passed through the solution, producing sodium hypochlorite. The automatic process cycle is repeated until the product storage tank is filled.

In conventional chlorination processes, commercial strength sodium hypochlorite can degrade quickly in storage, often losing up to 20% of its chlorine content in a relatively short period of time. In contrast, the sodium hypochlorite solution produced by the HYPROLYSER® system does not require caustic buffer chemicals or additives to retain its chlorine content. It can retain its original chlorine concentration for several months. The combination of storing low strength hypochlorite solution, the avoidance of chemical deliveries, handling and operator involvement significantly reduce the likelihood of any accidental spillage.



ADVANTAGES
  • Considerable Health & Safety benefit to operators by using only salt, eliminating delivery & handling of hazardous chemicals
  • Generate chlorine on site for day tank storage or direct injection on demand
  • A single iSEC® can provide chlorine disinfection for multiple injection points using a common product storage tank and dosing pumps
  • Eliminate dosing pump air-locking associated with commercial sodium hypochlorite
  • Eliminate injection point scaling associated with commercial sodium and calcium hypochlorites due to low mineral content of generated solution
  • Simple and low maintenance frequency
  • >5 year electrolyser long life span


ADDITIONAL FEATURES
  • iSEC ® models available for 30, 60 and 90 g/h chlorine capacity
  • Durable and attractive plastic cover
  • Vivid LED illumination from the electrolytic chamber offers an attractive presence of the chlorine generation process and at the same time indicating through simple LED colour change the current operational status of the process.
  • Easy to operate membrane keypad multi-lingual control panel & OLED display with green, amber and red LED operational status indicators
  • Operational parameters displayed and code protected programming
  • Alarm event log with real time clock recording
  • Volumetric flow measurement of water and brine for consistent high efficiency electrolysis
  • Corrosion resistant PVDF tank level switches
  • Failsafe system management of room ventilation via integrated hydrogen gas detector
  • Telemetry alarm event, data logging & RS485 options
  • Supplied with fixings for wall mounting and includes product tank level switch kit and brine suction assembly
  • Installation easily customised to meet space restrictions



APPLICATIONS
  • Industrial water and wastewater treatment
  • Chlorination of potable water supplies
  • Food washing / processing treatment
  • Dairies / Breweries cleaning in place (CIP)
  • Cooling tower biocide treatment
  • Secondary disinfection
  • Swimming & Spa pool disinfection
  • Industrial chlorination treatments



PRODUCT PACKAGE INCLUDES
  • Gaffey Hyprolyser iSEC Skid-II 90g/h Electro-Chlorination System (240V)
  • Supply of Electro-Chlorination System includes:

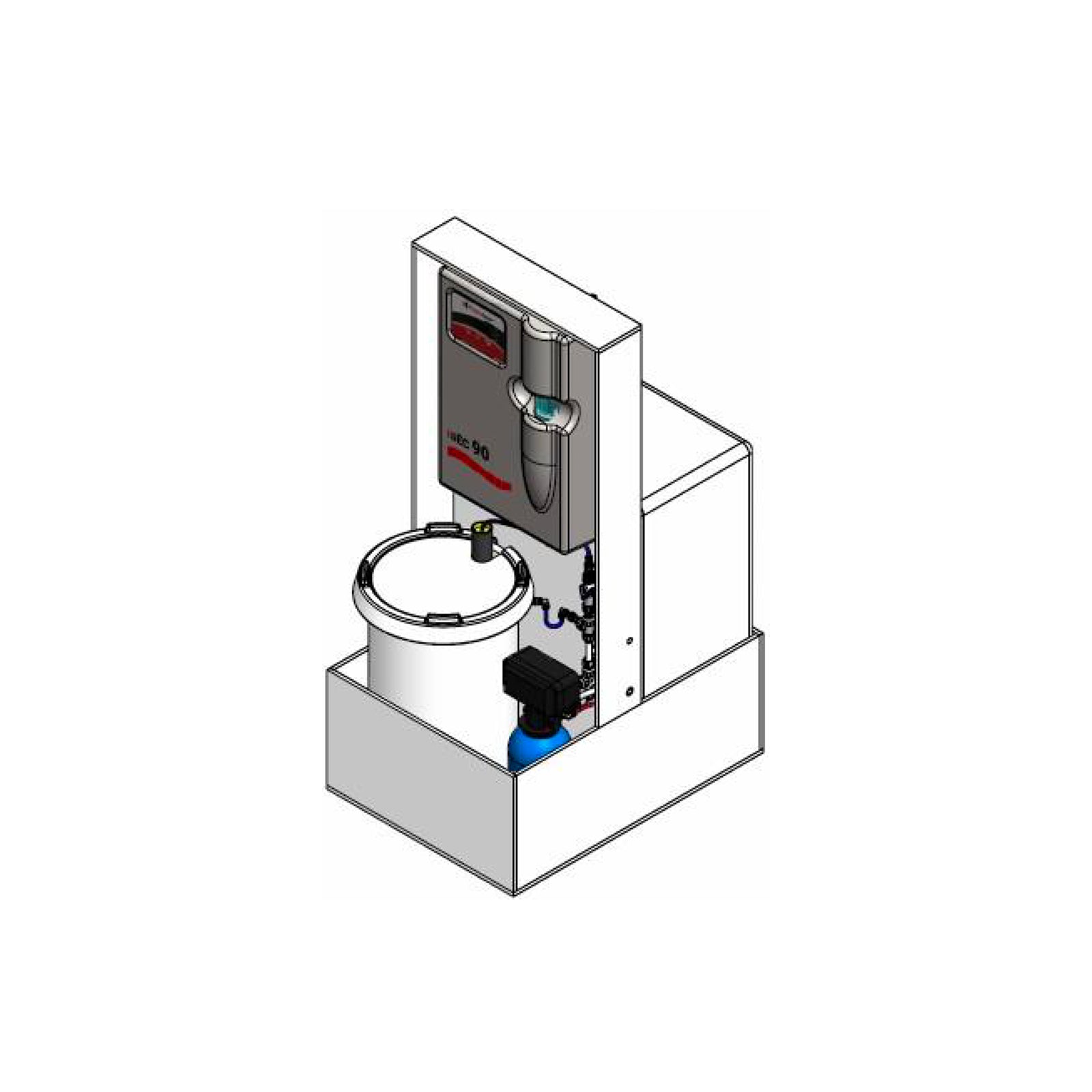

    • Pre-fabricated Skid (dimensions: W654 x D876 x H1515mm)
    • 50 kg Salt Saturator
    • 200 litre Chlorine Product Tank
    • Auto-Regenerative Softener
    • Pre-plumbed fittings kit (dosing pump/s not included)
    • Air Blower Ventilation Kit



    Brand Gaffey
    Model GAF-204-312
    Gross Dimensions
    Weight  104 kg
    Length 1512 mm
    Width 654 mm
    Depth 876 mm


    Chlorine Capacity 90 g per hour
    Chlorine Concentration 6 g per litre (typical)
    Salt Consumption 0.3 kg per hour
    Soft Water 15 litres per hour
    Operating Pressure 1.5 - 8 bar (typical range)
    Power (max) 0.46kW
    Voltage 230 / 1 / 50-60



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Gaffey Hyprolyser Electro-Chlorination System is outlined in the product brochure.

    DOWNLOAD

    KEY FEATURES
    • Reliable and cost-effective system for onsite production of sodium hypochlorite
    • Skid systems are a complete package for simple and quick installation
    • Supplied pre-built and tested including softener, salt saturator and chlorine product storage tank





    The industry leading HYPROLYSER® iSEC® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution.

    The iSEC® system automatically draws a concentrated brine solution from a salt saturator which is then diluted to the correct strength with softened water for efficient electrolysis. The diluted brine is automatically fed to the electrolytic cell where electric current is passed through the solution, producing sodium hypochlorite. The automatic process cycle is repeated until the product storage tank is filled.

    In conventional chlorination processes, commercial strength sodium hypochlorite can degrade quickly in storage, often losing up to 20% of its chlorine content in a relatively short period of time. In contrast, the sodium hypochlorite solution produced by the HYPROLYSER® system does not require caustic buffer chemicals or additives to retain its chlorine content. It can retain its original chlorine concentration for several months. The combination of storing low strength hypochlorite solution, the avoidance of chemical deliveries, handling and operator involvement significantly reduce the likelihood of any accidental spillage.



    ADVANTAGES
    • Considerable Health & Safety benefit to operators by using only salt, eliminating delivery & handling of hazardous chemicals
    • Generate chlorine on site for day tank storage or direct injection on demand
    • A single iSEC® can provide chlorine disinfection for multiple injection points using a common product storage tank and dosing pumps
    • Eliminate dosing pump air-locking associated with commercial sodium hypochlorite
    • Eliminate injection point scaling associated with commercial sodium and calcium hypochlorites due to low mineral content of generated solution
    • Simple and low maintenance frequency
    • >5 year electrolyser long life span


    ADDITIONAL FEATURES
    • iSEC ® models available for 30, 60 and 90 g/h chlorine capacity
    • Durable and attractive plastic cover
    • Vivid LED illumination from the electrolytic chamber offers an attractive presence of the chlorine generation process and at the same time indicating through simple LED colour change the current operational status of the process.
    • Easy to operate membrane keypad multi-lingual control panel & OLED display with green, amber and red LED operational status indicators
    • Operational parameters displayed and code protected programming
    • Alarm event log with real time clock recording
    • Volumetric flow measurement of water and brine for consistent high efficiency electrolysis
    • Corrosion resistant PVDF tank level switches
    • Failsafe system management of room ventilation via integrated hydrogen gas detector
    • Telemetry alarm event, data logging & RS485 options
    • Supplied with fixings for wall mounting and includes product tank level switch kit and brine suction assembly
    • Installation easily customised to meet space restrictions



    APPLICATIONS
    • Industrial water and wastewater treatment
    • Chlorination of potable water supplies
    • Food washing / processing treatment
    • Dairies / Breweries cleaning in place (CIP)
    • Cooling tower biocide treatment
    • Secondary disinfection
    • Swimming & Spa pool disinfection
    • Industrial chlorination treatments



    PRODUCT PACKAGE INCLUDES
    • Gaffey Hyprolyser iSEC Skid-II 90g/h Electro-Chlorination System (240V)
    • Supply of Electro-Chlorination System includes:
      • Pre-fabricated Skid (dimensions: W654 x D876 x H1515mm)
      • 50 kg Salt Saturator
      • 200 litre Chlorine Product Tank
      • Auto-Regenerative Softener
      • Pre-plumbed fittings kit (dosing pump/s not included)
      • Air Blower Ventilation Kit



      SPECIFICATIONS
      Brand Gaffey
      Model GAF-204-312
      Gross Dimensions
      Weight  104 kg
      Length 1512 mm
      Width 654 mm
      Depth 876 mm


      Chlorine Capacity 90 g per hour
      Chlorine Concentration 6 g per litre (typical)
      Salt Consumption 0.3 kg per hour
      Soft Water 15 litres per hour
      Operating Pressure 1.5 - 8 bar (typical range)
      Power (max) 0.46kW
      Voltage 230 / 1 / 50-60



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
