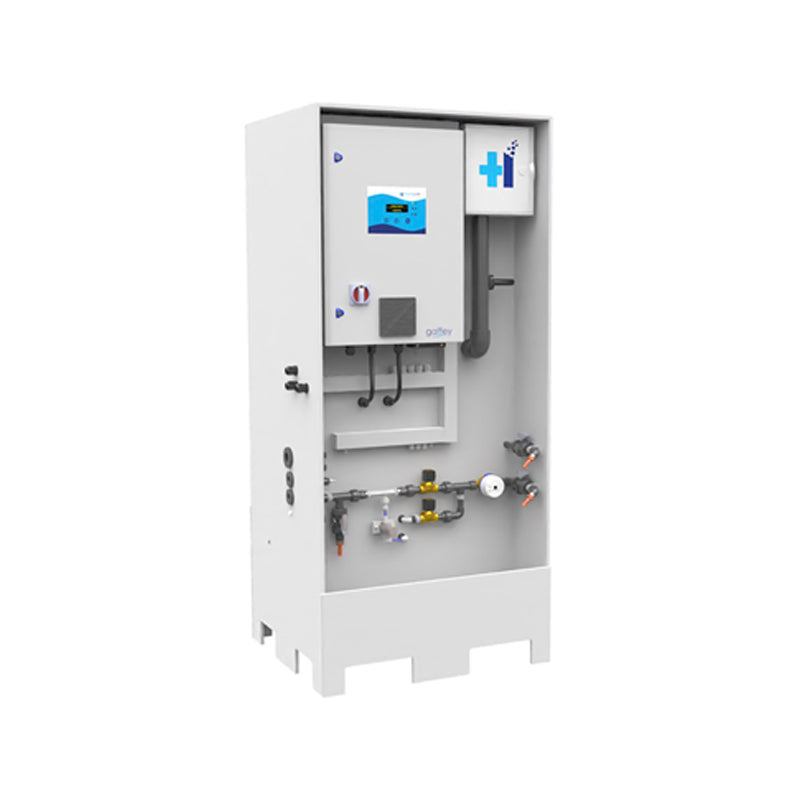

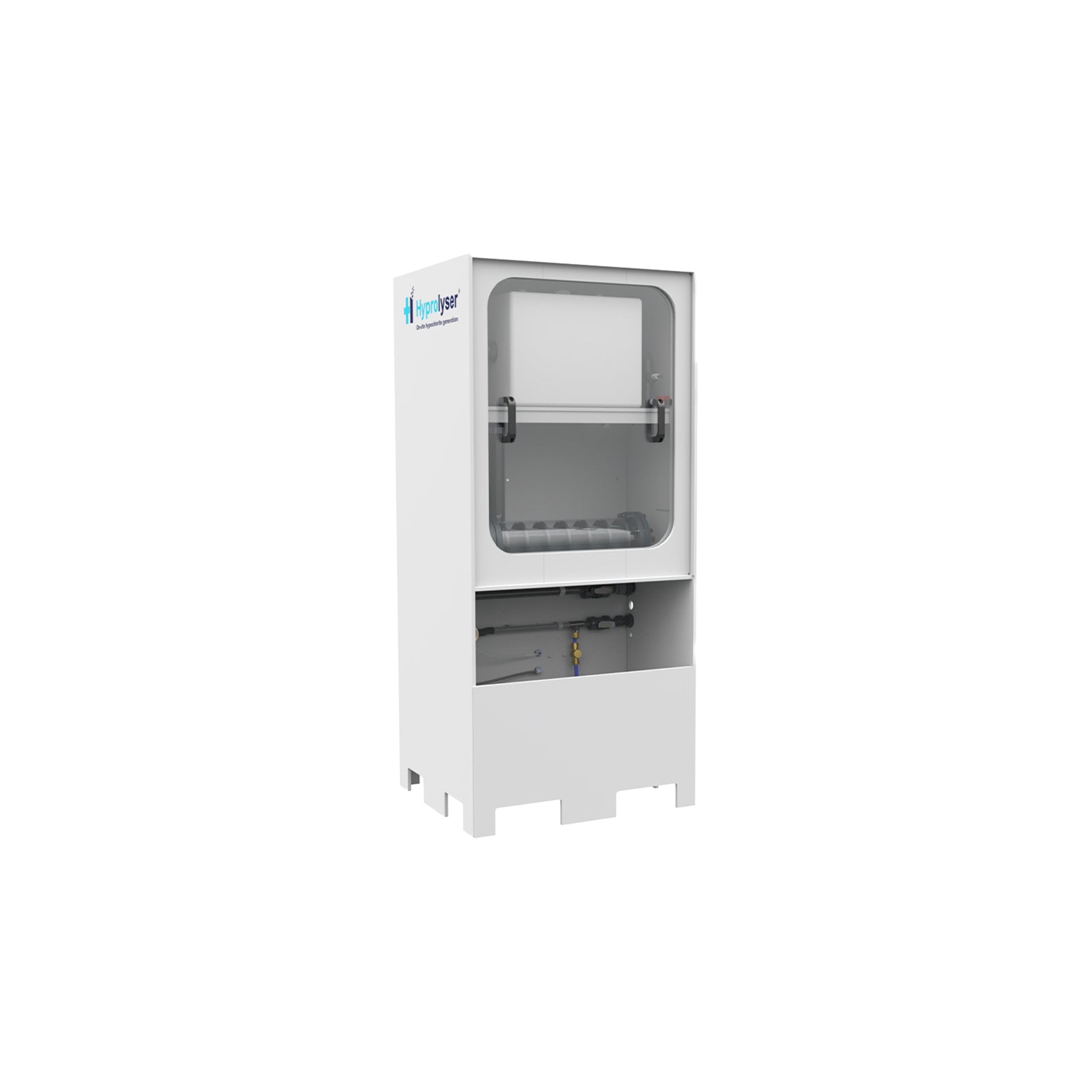

Gaffey Hyprolyser, 1100 g/h High-Capacity Electro-Chlorination System (415V)

Gaffey Hyprolyser, 1100 g/h High-Capacity Electro-Chlorination System (415V)

Product Code: GAF-203-469

The industry leading HYPROLYSER® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution.

$81,496.80 Excl. GST
$89,646.48 Incl. GST
Enquire about availability
Vendor: Gaffey

Unavailable

KEY FEATURES
  • Convenient & cost-effective system for onsite production of sodium hypochlorite
  • Eliminate injection point scaling associated with sodium & calcium hypochlorite
  • Considerable Health & Safety benefit to operators



The industry leading HYPROLYSER® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution. Due to the low caustic and mineral content of the generated solution, injection point cleaning and descaling tasks are completely eliminated.

In conventional chlorination processes, commercial strength sodium hypochlorite can degrade quickly in storage, often losing up to 20% of its chlorine content in a relatively short period of time. In contrast, the sodium hypochlorite solution produced by the HYPROLYSER® system does not require caustic buffer chemicals or additives to retain its chlorine content. It can retain its original chlorine concentration for several months. The combination of storing low strength hypochlorite solution, the avoidance of chemical deliveries, handling and operator involvement significantly reduce the likelihood of any accidental spillage.



ADVANTAGES
  • Eliminate delivery & handling of hazardous chemicals
  • Handle only salt
  • Generate on site for on-demand or residual storage
  • Eliminate dosing pump air-locking associated with commercial hypochlorites
  • Eliminate injection point scaling associated with commercial sodium and calcium hypochlorites
  • Considerable Health & Safety benefit to operators


ADDITIONAL FEATURES
  • On site electrolysis of brine for safe generation and preparation of <1% sodium hypochlorite solution
  • Safe and fully sealed electrolytic process
  • Easy to operate
  • Integrated control panel & OLED screen
  • Manual and automatic operation
  • Multilingual operating display option
  • Telemetry alarm event & data logging option
  • Onsite chlorine production



APPLICATIONS
  • Industrial water and wastewater treatment
  • Chlorination of potable water supplies
  • Food washing / processing treatment
  • Dairies / Breweries cleaning in place (CIP)
  • Cooling tower biocide treatment
  • Secondary disinfection
  • Swimming & Spa pool disinfection
  • Industrial chlorination treatments



EASY TO OPERATE

The operator is required to fill the salt saturator tank with salt. From this, the HYPROLYSER® system produces a concentrated brine solution which is then diluted to the correct strength for efficient electrolysis. The diluted brine is then delivered to the electrolytic cell where electric current is passed through the solution, producing sodium hypochlorite. The process is continued automatically until the product storage tank is filled. A range of metering and transfer pump options are available to convey the hypochlorite safely to the disinfection/treatment process.



PRODUCT PACKAGE INCLUDES
  • Gaffey Hyprolyser, 1100g/h High-Capacity Electro-Chlorination System (415V)



    Brand Gaffey
    Model GAF-203-469
    Gross Dimensions
    Weight  173 kg
    Length 1902 mm
    Width 850 mm
    Depth 752 mm


    Chlorine Capacity 1100 g per hour
    Chlorine Capacity 26.4 kg per day
    Chlorine Concentration 5 - 7 g per litre (typical)
    Salt Consumption 3.60 kg per hour
    Soft Water 184 litres per hour
    Operating Pressure 1.5 - 8 bar (typical range)
    Power (max) 5.6 kW
    Voltage 400 / 3 / 50-60



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Gaffey Hyprolyser Electro-Chlorination System is outlined in the product brochure.

    DOWNLOAD



    SAFETY FEATURES

    Additional safety related information regarding the Gaffey Hyprolyser Electro-Chlorination System is outlined in the safety brochure.

    DOWNLOAD

    KEY FEATURES
    • Convenient & cost-effective system for onsite production of sodium hypochlorite
    • Eliminate injection point scaling associated with sodium & calcium hypochlorite
    • Considerable Health & Safety benefit to operators



    The industry leading HYPROLYSER® range of electrochlorination systems developed by Gaffey, provide an on-demand supply of sodium hypochlorite solution, generated through the electrolysis of a diluted brine solution. Due to the low caustic and mineral content of the generated solution, injection point cleaning and descaling tasks are completely eliminated.

    In conventional chlorination processes, commercial strength sodium hypochlorite can degrade quickly in storage, often losing up to 20% of its chlorine content in a relatively short period of time. In contrast, the sodium hypochlorite solution produced by the HYPROLYSER® system does not require caustic buffer chemicals or additives to retain its chlorine content. It can retain its original chlorine concentration for several months. The combination of storing low strength hypochlorite solution, the avoidance of chemical deliveries, handling and operator involvement significantly reduce the likelihood of any accidental spillage.



    ADVANTAGES
    • Eliminate delivery & handling of hazardous chemicals
    • Handle only salt
    • Generate on site for on-demand or residual storage
    • Eliminate dosing pump air-locking associated with commercial hypochlorites
    • Eliminate injection point scaling associated with commercial sodium and calcium hypochlorites
    • Considerable Health & Safety benefit to operators


    ADDITIONAL FEATURES
    • On site electrolysis of brine for safe generation and preparation of <1% sodium hypochlorite solution
    • Safe and fully sealed electrolytic process
    • Easy to operate
    • Integrated control panel & OLED screen
    • Manual and automatic operation
    • Multilingual operating display option
    • Telemetry alarm event & data logging option
    • Onsite chlorine production



    APPLICATIONS
    • Industrial water and wastewater treatment
    • Chlorination of potable water supplies
    • Food washing / processing treatment
    • Dairies / Breweries cleaning in place (CIP)
    • Cooling tower biocide treatment
    • Secondary disinfection
    • Swimming & Spa pool disinfection
    • Industrial chlorination treatments



    EASY TO OPERATE

    The operator is required to fill the salt saturator tank with salt. From this, the HYPROLYSER® system produces a concentrated brine solution which is then diluted to the correct strength for efficient electrolysis. The diluted brine is then delivered to the electrolytic cell where electric current is passed through the solution, producing sodium hypochlorite. The process is continued automatically until the product storage tank is filled. A range of metering and transfer pump options are available to convey the hypochlorite safely to the disinfection/treatment process.



    PRODUCT PACKAGE INCLUDES
    • Gaffey Hyprolyser, 1100g/h High-Capacity Electro-Chlorination System (415V)



      SPECIFICATIONS
      Brand Gaffey
      Model GAF-203-469
      Gross Dimensions
      Weight  173 kg
      Length 1902 mm
      Width 850 mm
      Depth 752 mm


      Chlorine Capacity 1100 g per hour
      Chlorine Capacity 26.4 kg per day
      Chlorine Concentration 5 - 7 g per litre (typical)
      Salt Consumption 3.60 kg per hour
      Soft Water 184 litres per hour
      Operating Pressure 1.5 - 8 bar (typical range)
      Power (max) 5.6 kW
      Voltage 400 / 3 / 50-60
