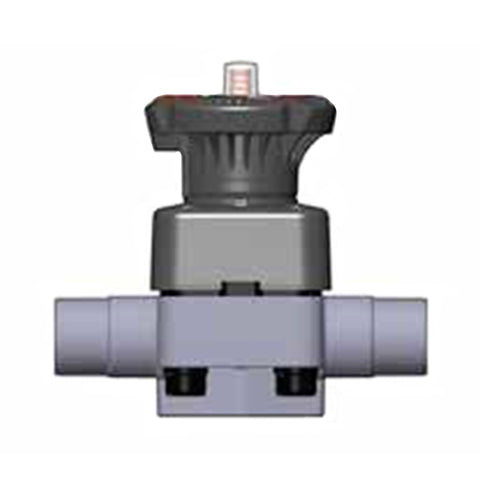

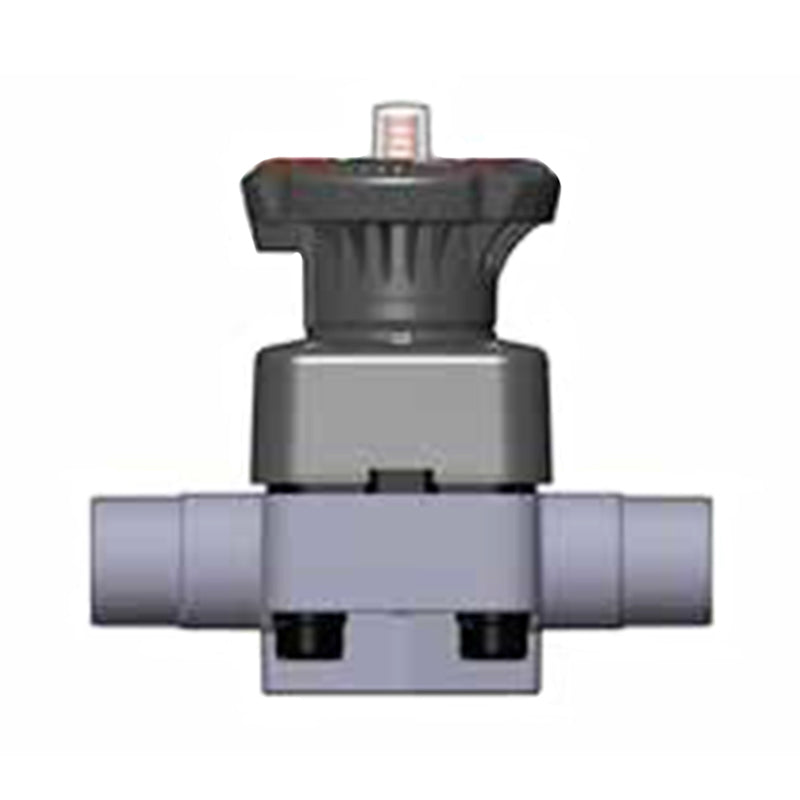

FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, EPDM, Solvent Weld Connections

FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, EPDM, Solvent Weld Connections

Product Code: FIP-DKDV020E

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The DK is extremely compact and very light. The innovative handwheel is equipped with a locking device.

Enquire about availability
Vendor: FIP

Unavailable

KEY FEATURES
  • Maximum output fluid flow rate thanks to the optimised design efficiency
  • Internal components in metal, totally isolated from the fluid and external environment
  • EPDM diaphragm

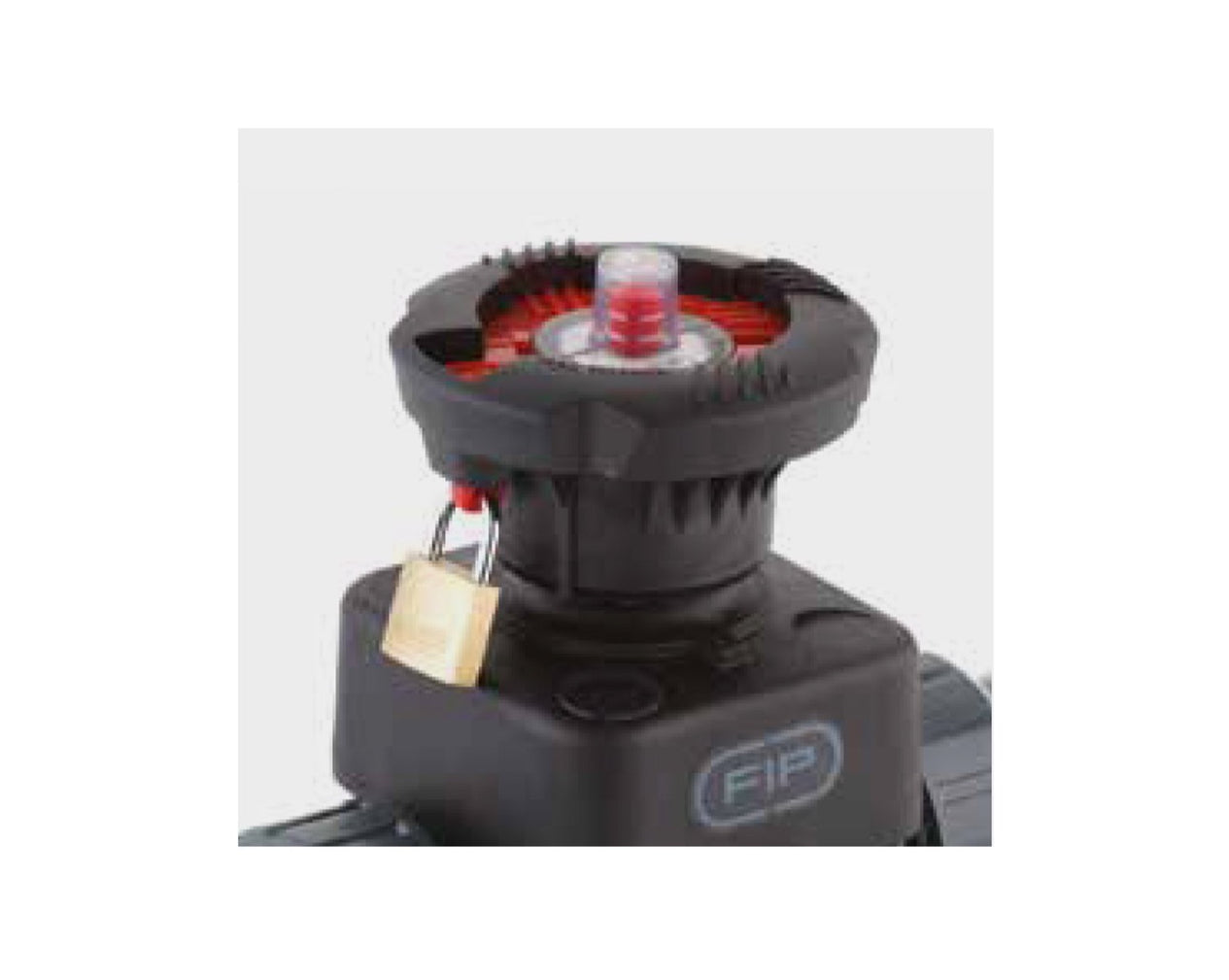

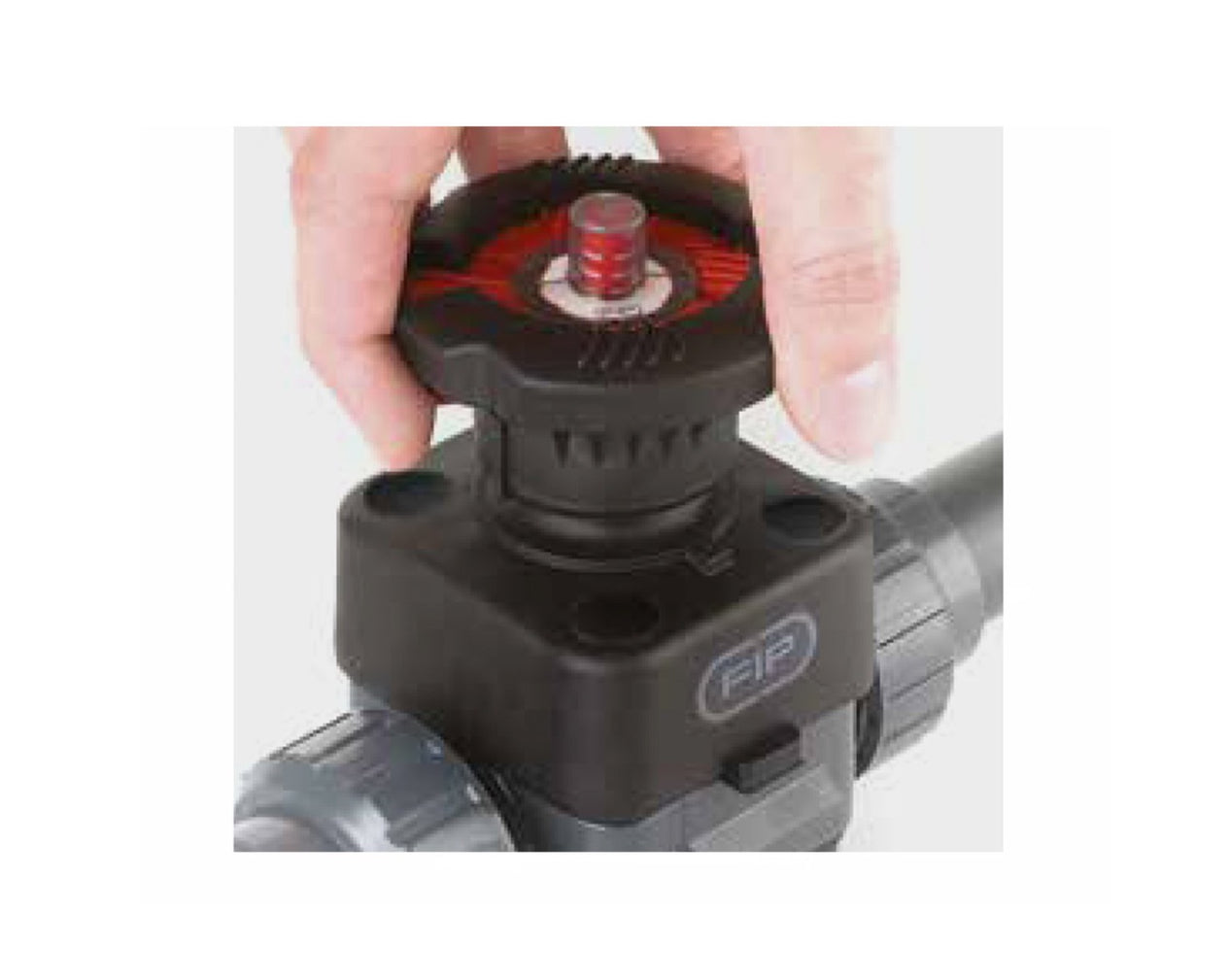

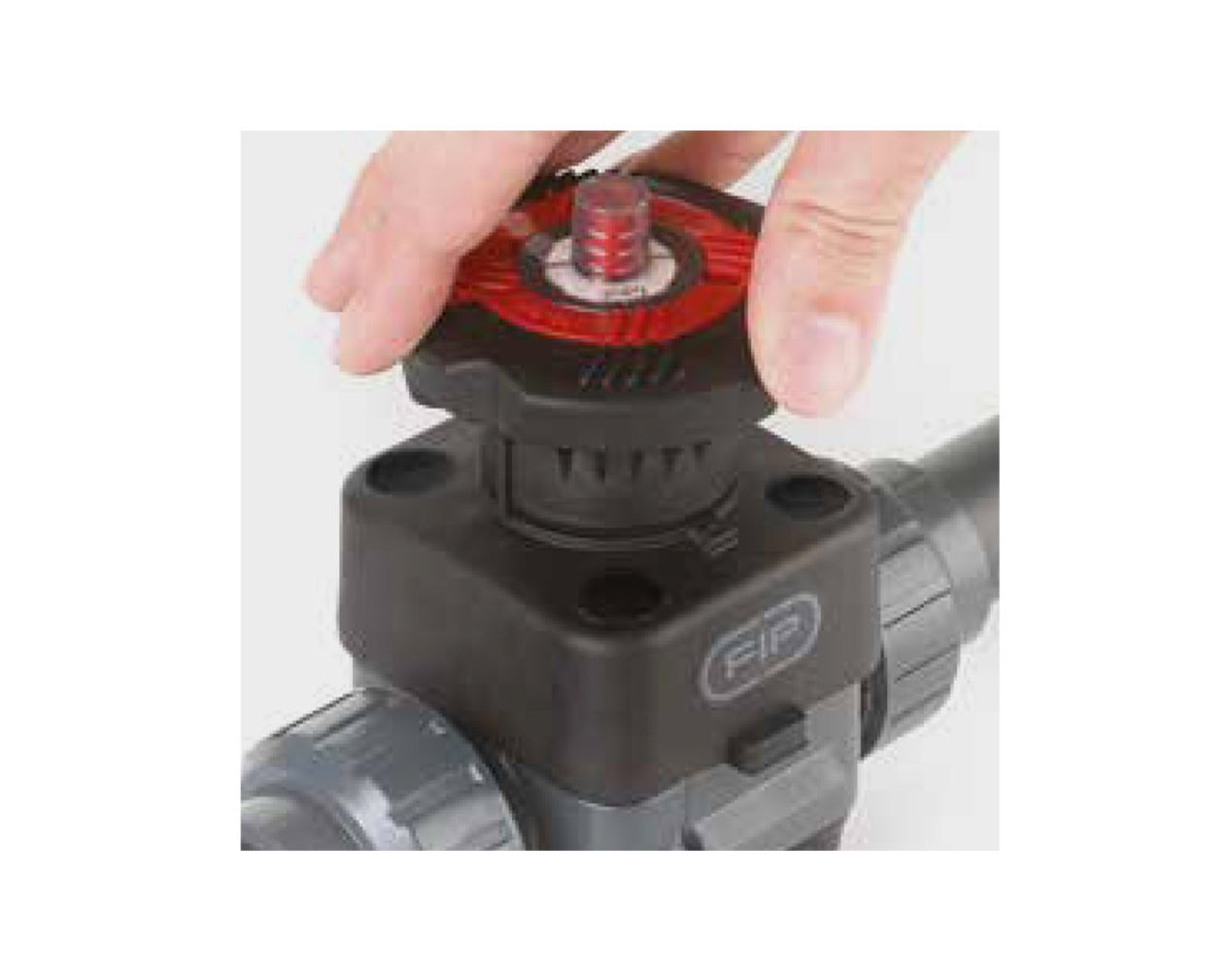

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body optimises fluid dynamic efficiency by increasing the flow rate and ensuring an optimum linearity of the flow adjustment curve. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.



ADDITIONAL FEATURES
  • Diaphragm valve with maximized flow rate and DIALOCK® lockable handwheel
  • Internal components in metal, totally isolated from the fluid and external environment.

APPLICATIONS
  • The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids, as well as other water and wastewater related applications



PRODUCT PACKAGE INCLUDES
  • FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, EPDM, Solvent Weld Connections



    Brand FIP
    Model DIALOCK DKDV PVC-U Diaphragm Valve
    Weight  460 g
    Length 124 mm
    Width 80 mm
    Depth 127 mm
    Nominal Operating Pressure PN10 at 20 °C
    Operating Temperature 0 - 60 °C
    Material - Valve Body PVC-U
    Material - Diaphragm EPDM
    Connections DN15 Male ends for solvent welding
    Control Options Manual control



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, is outlined in the product brochure.

    DOWNLOAD



    PRODUCT INSTALLATION GUIDE

    Additional information about the installing FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, is provided in the product installation guide.

    DOWNLOAD

    KEY FEATURES
    • Maximum output fluid flow rate thanks to the optimised design efficiency
    • Internal components in metal, totally isolated from the fluid and external environment
    • EPDM diaphragm



    The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body optimises fluid dynamic efficiency by increasing the flow rate and ensuring an optimum linearity of the flow adjustment curve. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.



    ADDITIONAL FEATURES
    • Diaphragm valve with maximized flow rate and DIALOCK® lockable handwheel
    • Internal components in metal, totally isolated from the fluid and external environment.

    APPLICATIONS
    • The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids, as well as other water and wastewater related applications



    PRODUCT PACKAGE INCLUDES
    • FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, EPDM, Solvent Weld Connections



      SPECIFICATIONS
      Brand FIP
      Model DIALOCK DKDV PVC-U Diaphragm Valve
      Weight  460 g
      Length 124 mm
      Width 80 mm
      Depth 127 mm
      Nominal Operating Pressure PN10 at 20 °C
      Operating Temperature 0 - 60 °C
      Material - Valve Body PVC-U
      Material - Diaphragm EPDM
      Connections DN15 Male ends for solvent welding
      Control Options Manual control



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, is outlined in the product brochure.

      DOWNLOAD



      PRODUCT INSTALLATION GUIDE

      Additional information about the installing FIP 15 mm (DN15), DIALOCK DKDV PVC-U Diaphragm Valve, is provided in the product installation guide.

      DOWNLOAD
