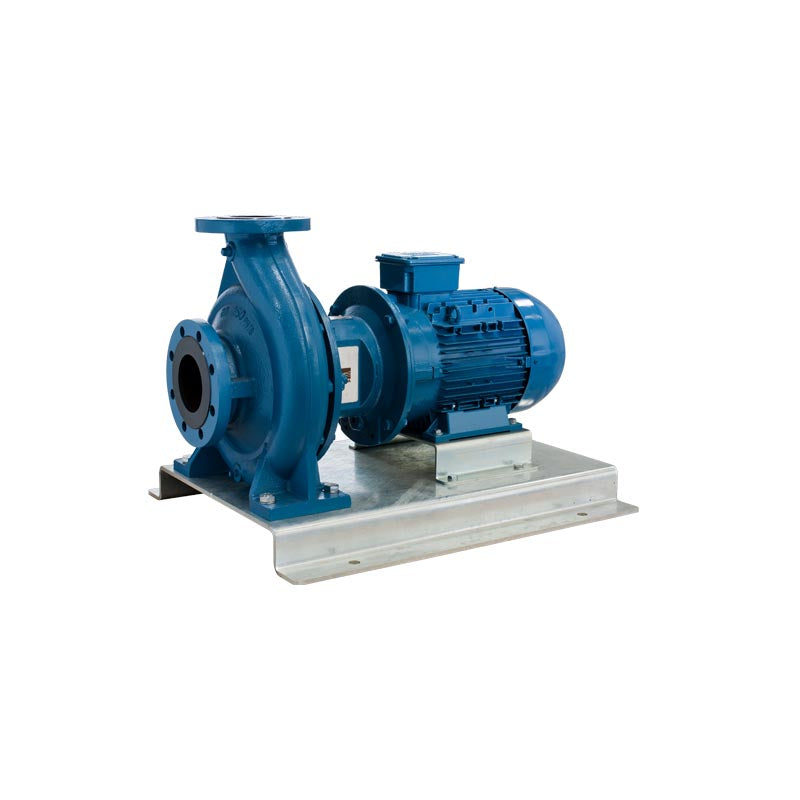

Ebara GSD P2 5.5kW Cast Iron End Suction Motor Pumps (to EN733) On Baseplate (GSD2 32-200)
Ebara GSD P2 5.5kW Cast Iron End Suction Motor Pumps (to EN733) On Baseplate (GSD2 32-200)
GSD Cast Iron End Suction Motor Pumps (to EN733) are versatile high quality compact close coupled motor pump suitable or many applications where water needs to be transferred or boosted.
Vendor: Ebara
Unavailable
KEY FEATURES
- Pump dimensions to EN733
- High efficiency hydraulic design (MEI > 0.6 all models)
- Cast Iron/Bronze/Stanless steel construction
- Compact close coupled design
GSD Cast Iron End Suction Motor Pumps (to EN733) are versatile high quality compact close coupled motor pump suitable or many applications where water needs to be transferred or boosted.
ADDITIONAL FEATURES
- Pump dimensions to EN733
- High efficiency hydraulic design (MEI > 0.6 all models)
- Cast Iron/Bronze/Stanless steel construction
- Compact close coupled design
APPLICATIONS
- Water supply & pressure bossting
- Building services & cooling towers
- Industrial
- Irrigation, etc.
PRODUCT PACKAGE INCLUDES
- Ebara GSD P2 5.5kW Cast Iron End Suction Motor Pumps (to EN733) On Baseplate (GSD2 32-200)
SPECIFICATIONS
| Brand | Ebara |
| Supplier Model | GSD2 32-200 |
| Model | EBA-GSD2-32-200-179-A2-5-5.5-1A0 |
| Pump Type |
Close coupled end suction motor pump to EN733 (Pump end dimensions) |
| Flanges | EN PN 16 (EN 1092-2) |
| Pump Discharge | 32 mm |
| Nominal Impeller Diameter | 200 mm |
| Motor Power | 5.5kW |
| Type | 3A |
| Weight | 126 kg |
| Performance | (Q) 8 - 800m3/hr (H) 10 150 m hd |
| Liquid handled | Water |
| Temperature | -10 to +12ºC |
| Max. allowable working pressure (MAWP) | 16 bar |
| Max. allowable suction pressure (MASP) | <16 Bar - Pump shut-off pressure (PSP) |
| Motor Type |
WEG W21 |
| Shaft | Stub shaft & hub |
| Mechanical seal | Single spring,rubber bellows (to EN12756) |
| Efficiency Std | IE3 /E2 |
| Enclosure | IP55 |
| Insulation class | Class F |
| Motor frame material | Aluminium |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.
DOWNLOAD
Additional information about the Ebara GSD cast iron end suction motor pump product range is outlined in the following brochure.
Technical information about the Ebara GSD cast iron end suction motor pump product range is outlined in the following brochure.
DOWNLOAD
Datasheet of Ebara GSD cast iron end suction motor pump product range is outlined in the following brochure.
DOWNLOAD
