Ebara EVMS(G) 3-8N5, 0.75kW, 304 SS Vertical Multistage Pump Kit with 3ph Motor

Ebara EVMS(G) 3-8N5, 0.75kW, 304 SS Vertical Multistage Pump Kit with 3ph Motor

Product Code: EBA-EVMS-G-3-8N5-0.75

Ebara 3D is a very economical range of high-quality pumps made in Europe utilizing cast iron casings and extended shaft motors. The use of IE3 motors (3-phase versions) and the smooth surfaces of the stamped stainless steel impellers result in a product of consistent high quality and efficiency.

$1,230.00 Excl. GST
$1,353.00 Incl. GST
Enquire about availability
Vendor: Ebara

Unavailable

KEY FEATURES
  • Use standard IEC motors
  • Various connections - Oval, round or loose flange; victaulic; clamp
  • Cast iron, 304 or 316 stainless steel material options.



EBARA’s new EVMS vertical multistage pumps are manufactured to the highest standards of quality, and achieve reliable operating performance by means of strict technical evaluation criteria and control programs that involve the whole manufacturing process.

Ebara has rethought the hydraulic design used in multistage pumps. Utilising the latest in computational fluid dynamics and design, followed by rigorous testing, Ebara has developed a unique impeller design that offer solutions and value to the customer.

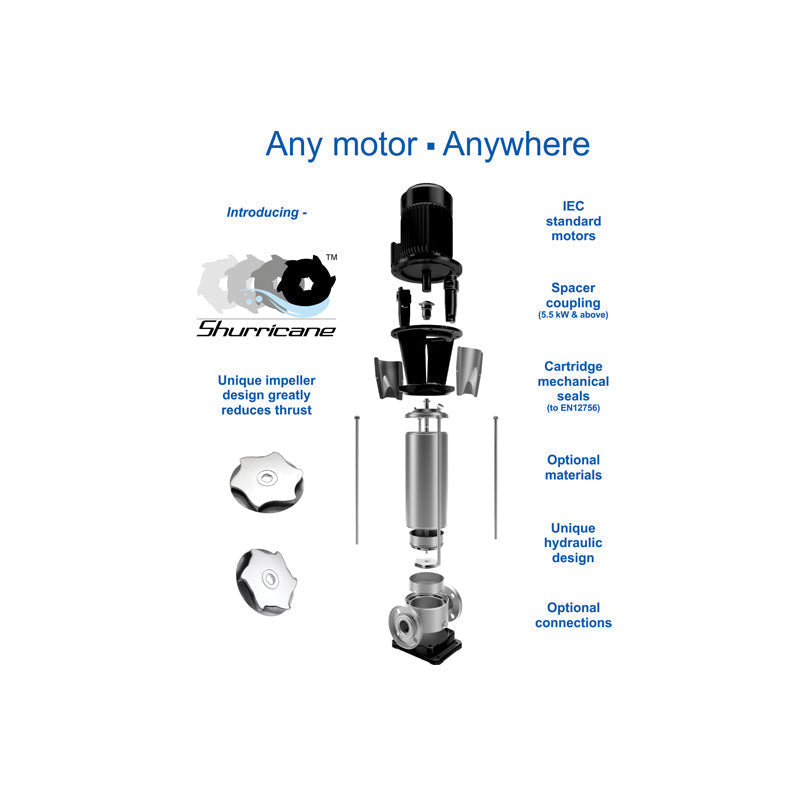

The optimised shape of the Shurricane maintains high efficiencies and very significantly reduces the axial thrust - meaning that any standard IEC motor can be used and bearing life is improved

ADDITIONAL FEATURES
  • Various seal material options
  • Cartridge seals for easy maintenance
  • Spacer coupling (5.5 kW & above)



APPLICATIONS
  • Industrial, commercial and agricultural applications
  • Water treatment plants (reverse osmosis, filtration)
  • Boiler feed - Irrigation systems - Fire fighting
  • Pumping of hot or cold water for HVAC systems
  • For the pumping or boosting of water in genera

PRODUCT PACKAGE INCLUDES
  • Ebara EVMS(G) 3-8N5, 0.75kW, 304 SS Vertical Multistage Pump Kit with 3ph Motor



    Brand Ebara
    Model EBA-EVMS-G-3-8N5-0.75
    Dimensions
    Weight  33 kg
    Length 80 cm
    Width 40 cm
    Depth 50 cm
    Nominal capacity
    3 m3/hr
    No of Stages
    8
    Flange Type
    16 Bar Oval
    Frequency 50 Hz
    Moter Size 0.75kW
    Total Head 55 m
    Max. Liquid temp: 140°C



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Eabara EVMS(G) range is outlined in the brochure.

    DOWNLOAD



    Technical information about the Ebara EVMS(G) range is outlined in the following Technical data sheet.

    DOWNLOAD



    KEY FEATURES
    • Use standard IEC motors
    • Various connections - Oval, round or loose flange; victaulic; clamp
    • Cast iron, 304 or 316 stainless steel material options.



    EBARA’s new EVMS vertical multistage pumps are manufactured to the highest standards of quality, and achieve reliable operating performance by means of strict technical evaluation criteria and control programs that involve the whole manufacturing process.

    Ebara has rethought the hydraulic design used in multistage pumps. Utilising the latest in computational fluid dynamics and design, followed by rigorous testing, Ebara has developed a unique impeller design that offer solutions and value to the customer.

    The optimised shape of the Shurricane maintains high efficiencies and very significantly reduces the axial thrust - meaning that any standard IEC motor can be used and bearing life is improved

    ADDITIONAL FEATURES
    • Various seal material options
    • Cartridge seals for easy maintenance
    • Spacer coupling (5.5 kW & above)



    APPLICATIONS
    • Industrial, commercial and agricultural applications
    • Water treatment plants (reverse osmosis, filtration)
    • Boiler feed - Irrigation systems - Fire fighting
    • Pumping of hot or cold water for HVAC systems
    • For the pumping or boosting of water in genera

    PRODUCT PACKAGE INCLUDES
    • Ebara EVMS(G) 3-8N5, 0.75kW, 304 SS Vertical Multistage Pump Kit with 3ph Motor



      SPECIFICATIONS
      Brand Ebara
      Model EBA-EVMS-G-3-8N5-0.75
      Dimensions
      Weight  33 kg
      Length 80 cm
      Width 40 cm
      Depth 50 cm
      Nominal capacity
      3 m3/hr
      No of Stages
      8
      Flange Type
      16 Bar Oval
      Frequency 50 Hz
      Moter Size 0.75kW
      Total Head 55 m
      Max. Liquid temp: 140°C



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Eabara EVMS(G) range is outlined in the brochure.

      DOWNLOAD



      Technical information about the Ebara EVMS(G) range is outlined in the following Technical data sheet.

      DOWNLOAD
