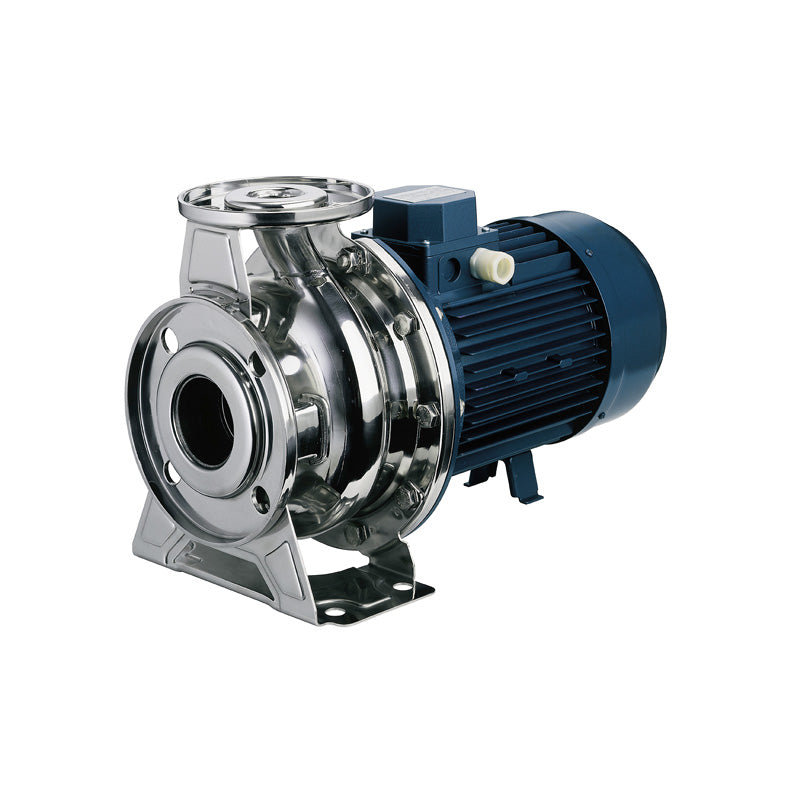

Ebara 3M4 1.1kW 50mm 3 Phase 4 Pole 304 SS 2900 RPM Back Pull Out Pump
Ebara 3M4 1.1kW 50mm 3 Phase 4 Pole 304 SS 2900 RPM Back Pull Out Pump
3M4 pumps feature Ebara's unique one-piece volute casing. All the hydraulic and wetted components are manufactured in 304 stainless steel. Compact & economical close-coupled pumps utilizing an extended shaft motor.
Vendor: Ebara
Unavailable
KEY FEATURES
- All 304 Stainless steel construction.
- Carbon/Ceramic/NBR mechanical seal.
- Maximum liquid temperature 90 °C
3M pumps feature Ebara's unique one-piece volute casing. All the hydraulic and wetted components are manufactured in 304 stainless steel. Compact & economical close-coupled pumps utilizing an extended shaft motor.
ADDITIONAL FEATURES
- All 304 Stainless steel construction.
- Carbon/Ceramic/NBR mechanical seal.
- Maximum liquid temperature 90 °C
APPLICATIONS
- Industrial, commercial and agricultural applications
- Water supply
- Irrigation
- Cooling towers
- Booster sets
- Washing plants or machines
- Air conditioning systems
- Heat exchangers
- For the pumping or boosting of water in general
PRODUCT PACKAGE INCLUDES
-
Ebara 3M4 1.1kW 50mm 3 Phase 4 Pole 304 SS 2900 RPM Back Pull Out Pump
SPECIFICATIONS
| Brand | Ebara |
| Model | EBA-3M4-50-160-1-1 |
| Dimensions | |
| Weight | 30 kg |
| Length | 50 cm |
| Width | 34 cm |
| Depth | 41 cm |
| Minimum Power |
1.1kW |
| Voltage |
400V |
| Phase |
3 ph |
| Total Head | 9 m |
| Discharge/Suction | 50 mm / 65 mm |
| Max. working pressure: | 10 Bar |
| Max. Liquid temp: | 90 °C |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about the 3M4 Back Pull Out Pump range is outlined in the brochure.
DOWNLOAD
Technical information about the Ebara 3M4 Back Pull Out Pump range is outlined in the following Technical data sheet.
DOWNLOAD
