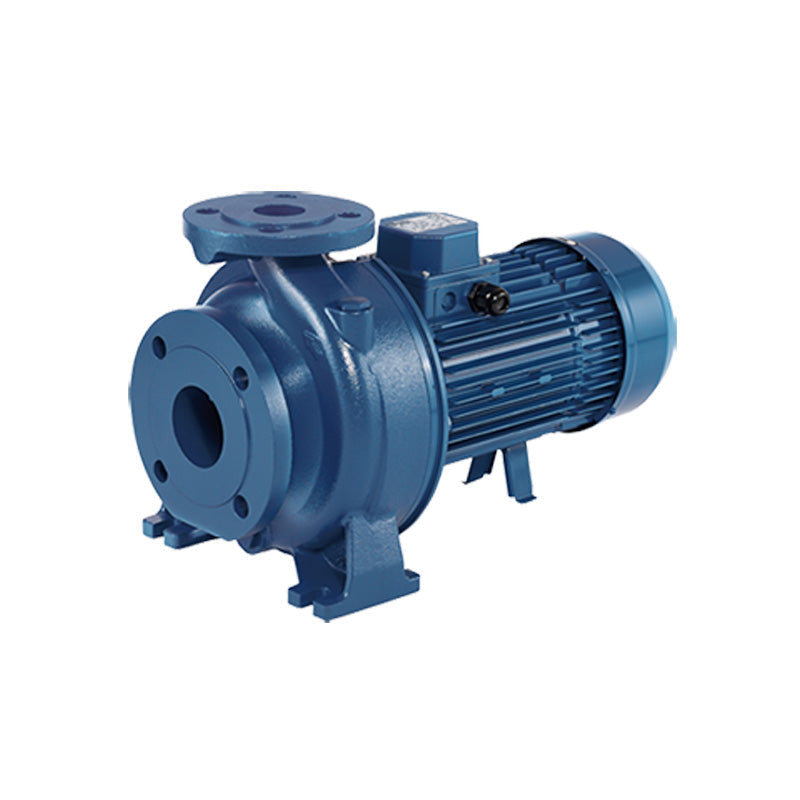

Ebara 3D 5.5kW 50mm 3 Phase 2 Pole 304 SS 2900 RPM Back Pull Out Pump
Ebara 3D 5.5kW 50mm 3 Phase 2 Pole 304 SS 2900 RPM Back Pull Out Pump
Ebara 3D is a very economical range of high-quality pumps made in Europe utilizing cast iron casings and extended shaft motors. The use of IE3 motors (3-phase versions) and the smooth surfaces of the stamped stainless steel impellers result in a product of consistent high quality and efficiency.
Vendor: Ebara
Unavailable
KEY FEATURES
- Cast iron casing with 304 stainless steel impeller
- IE3 high efficiency motors(3 phase models)
- Carbon/Ceramic/NBR mechanical seal.
- Maximum liquid temperature 90 °C
Ebara 3D is a very economical range of high quality pumps made in Europe utilising cast iron casings and extended shaft motors.
The use of IE3 motors (3 phase versions) and the smooth surfaces of the stamped stainless steel impellers result in a product of consistent high quality and efficiency.
The back pull-out construction permits the disassembly and overhaul of the impeller, mechanical seal and motor without removal of the suction or discharge piping, or pump casing. With dimensions to EN733 (ex. DIN24255) upgrading existing installations can be easy.
ADDITIONAL FEATURES
- Economical range of high quality pumps
- Carbon/Ceramic/NBR mechanical seal.
- Maximum liquid temperature 90 °C
APPLICATIONS
- Industrial, commercial and agricultural applications
- Water supply
- Irrigation
- Cooling towers
- Booster sets
- Washing plants or machines
- Air conditioning systems
- Heat exchangers
- For the pumping or boosting of water in general
PRODUCT PACKAGE INCLUDES
-
Ebara 3D 5.5kW 50mm 3 Phase 2 Pole 304 SS 2900 RPM Back Pull Out Pump
SPECIFICATIONS
| Brand | Ebara |
| Model | EBA-3D-50-160-5-5 |
| Dimensions | |
| Weight | 65 kg |
| Length | 55 cm |
| Width | 35 cm |
| Depth | 49 cm |
| Minimum Power |
5.5kW |
| Voltage |
400V |
| Phase |
3 ph |
| Total Head | 33 m |
| Discharge/Suction | 50 mm / 65 mm |
| Max. working pressure: | 10 Bar |
| Max. Liquid temp: | 90 °C |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about the 3D Back Pull Out Pump range is outlined in the brochure.
DOWNLOAD
Technical information about the Ebara 3D Back Pull Out Pump range is outlined in the following Technical data sheet.
DOWNLOAD
