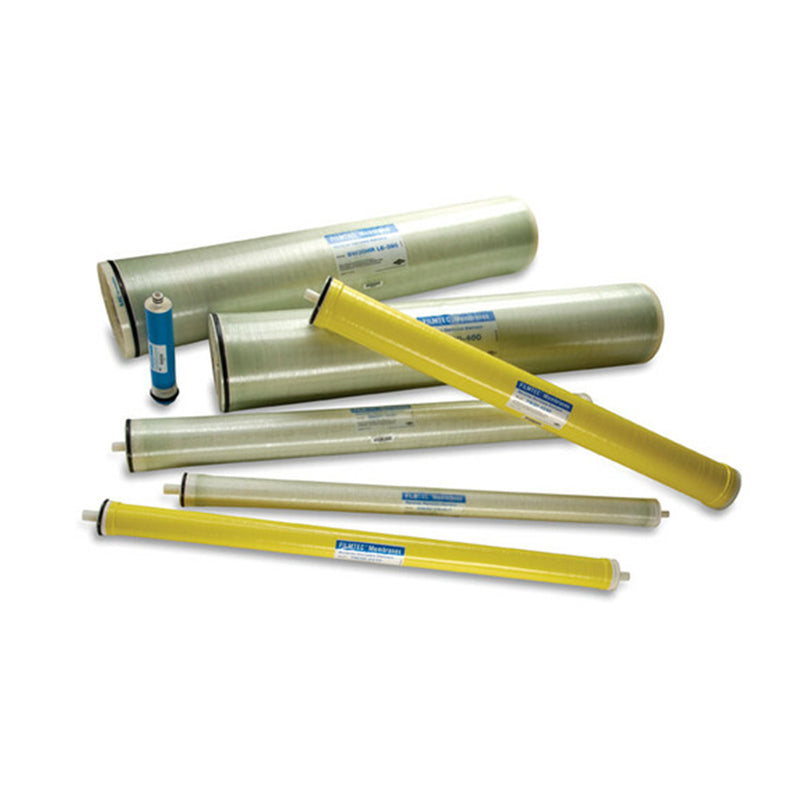

DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element

DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element

Product Code: FIL-BW30-2540

The FilmTec™ brackish water reverse osmosis membrane elements provide consistent system performance in light industrial applications. The FilmTec™ BW30-2540 Elements are designed for systems smaller than 1 gpm (0.2 m³/h) offering a hard shell exterior for extra strength.

In Stock - Available for Fast Delivery
Vendor: DuPont

Available

KEY FEATURES
  • High membrane flux results in high permeate yields
  • High salt rejection ensures high water quality
  • Reliable long-lasting performance



The FilmTec™ brackish water reverse osmosis membrane elements provide consistent system performance in light industrial applications.
The FilmTec BW30-2540 Elements are designed for systems smaller than 1 gpm (0.2 m³/h) offering a hard shell exterior for extra strength. Elements with a hard shell exterior are recommended for systems with multiple-element housings containing three or more membranes, as they are designed to withstand higher pressure drops.



ADDITIONAL FEATURES
  • High salt rejection (stabilised salt rejection 99.5%)
  • Hard external fibreglass shell



APPLICATIONS
  • Commonly used in a range of commercial water treatment systems including in food and beverage industry, medical and research institutions as well as hospitality industry.



PRODUCT PACKAGE INCLUDES
  • DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element



    Brand DuPont FilmTec™
    Model BW30-2540
    Weight  x g
    Length 1,016 mm (40")
    Width 61 mm
    Depth 61 mm
    Membrane Type
    Polyamide thin-film composite
    Permeate Flow Rate 3.8 m³/d
    Max Operating Temperature 45°C
    Max Operating Pressure 600 psig (41 bar)
    pH Range - Operating 2 - 11
    Additional Details Refer to the Product Data Sheet



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    PRODUCT INFORMATION SHEET (PIS)

    Technical details regarding the DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element, are outlined in the product information sheet (PIS).

    DOWNLOAD
    KEY FEATURES
    • High membrane flux results in high permeate yields
    • High salt rejection ensures high water quality
    • Reliable long-lasting performance



    The FilmTec™ brackish water reverse osmosis membrane elements provide consistent system performance in light industrial applications.
    The FilmTec BW30-2540 Elements are designed for systems smaller than 1 gpm (0.2 m³/h) offering a hard shell exterior for extra strength. Elements with a hard shell exterior are recommended for systems with multiple-element housings containing three or more membranes, as they are designed to withstand higher pressure drops.



    ADDITIONAL FEATURES
    • High salt rejection (stabilised salt rejection 99.5%)
    • Hard external fibreglass shell



    APPLICATIONS
    • Commonly used in a range of commercial water treatment systems including in food and beverage industry, medical and research institutions as well as hospitality industry.



    PRODUCT PACKAGE INCLUDES
    • DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element



      SPECIFICATIONS
      Brand DuPont FilmTec™
      Model BW30-2540
      Weight  x g
      Length 1,016 mm (40")
      Width 61 mm
      Depth 61 mm
      Membrane Type
      Polyamide thin-film composite
      Permeate Flow Rate 3.8 m³/d
      Max Operating Temperature 45°C
      Max Operating Pressure 600 psig (41 bar)
      pH Range - Operating 2 - 11
      Additional Details Refer to the Product Data Sheet



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      PRODUCT INFORMATION SHEET (PIS)

      Technical details regarding the DuPont FilmTec™ BW30-2540, 2.5" x 40" Fibreglassed Reverse Osmosis (RO) Membrane Element, are outlined in the product information sheet (PIS).

      DOWNLOAD
