KEY FEATURES

• Non-destructive ultrasonic testing technology measures total coating thickness on non-metallic concrete and fiberglass substrates.
• Advanced 2.8" impact-resistant color touchscreen with redesigned keypad and auto-rotating display with Flip Lock.
• Broad measurement range spans 50 to 3,800 µm (2 to 150 mils) with a minimum layer detection capability of 50 µm.
• Max Thick Mode isolates deep ultrasonic echoes to eliminate false readings from unwanted surface noise.
• Onboard internal memory allocation securely archives up to 1,000 diagnostic measurement readings per probe.
• Integrated statistics mode continually updates average, standard deviation, min/max limits, and reading count while measuring.
• Screen Capture utility saves up to 100 screen images directly to memory for thorough record keeping and review.
• Universal PosiTector body accepts 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG diagnostic probes.

The DeFelsko PosiTector Thickness Gauge 200-C1 Standard delivers a highly effective and robust chemical application framework for charging, coating, and executing smart troubleshooting loops across commercial refrigeration arrays and industrial climate systems. Standard utility bottles lack complex dilution metering valves, leading to irregular mixing ratios during high-volume servicing or chemical wastage that manual pouring methods fail to control properly; by embedding an integrated five-stage proportioning registry paired with an air-induction foaming matrix directly under a single pressurized instrument suite, this tool optimizes operational efficiency. Maintenance managers can apply active solutions smoothly, verify system cleaner penetration across thick coil banks, and switch over to a clean water siphon circuit safely without losing control over vital parameter settings.

ADDITIONAL FEATURES

• Weatherproof, dustproof, and water-resistant IP65-rated enclosure with a shock-absorbing protective rubber holster.
• PosiSoft USB Drive architecture allows stored readings and graphs to be accessed via standard web browsers or file managers.
• USB port provides fast data transfers to PC or Mac and delivers continuous power during prolonged benchtop audits.
• Responsive ultrasonic transducers deliver fast, repeatable readings without needing adjustments for most applications.
• Includes a long-form Certificate of Calibration showing official traceability to NIST or PTB standards.

APPLICATIONS

• Perfectly optimized for smart Bluetooth AC current clamping, automated parameter troubleshooting, Low Pass Filter (LPF) diagnostics, transient motor Inrush current capturing, peak value data tracking, non-contact voltage safety screening, contact temperature monitoring, circuit capacitance validation, and professional HVAC/R system field service.

PRODUCT PACKAGE INCLUDES

• 1 x Standard PosiTector Gauge Body Unit.

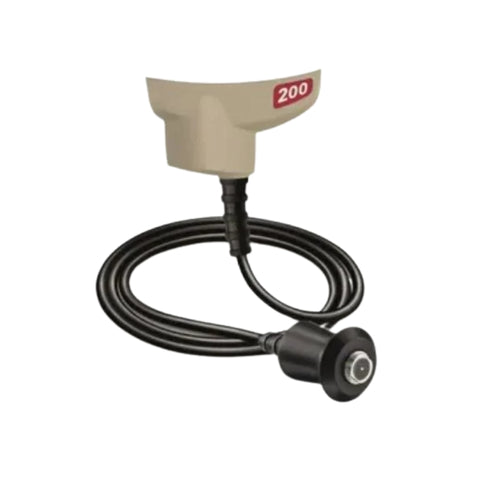

• 1 x DeFelsko 200C Ultrasonic Substrate Probe.
• 1 x Bottle of Ultrasonic Couplant Gel.
• 1 x Precision Plastic Test Block Standard.
• 1 x Shock-Absorbing Protective Rubber Holster.
• 1 x Protective Lens Shield Assembly.
• 1 x NIST or PTB Traceable Long-Form Certificate of Calibration.
• 1 x USB Interface Connection Cable.
• 1 x Convenient Transit Carrying Case.
• 3 x AAA Alkaline Power Supply Batteries.
• 1 x Nylon Wrist Strap Component.
• 1 x Comprehensive Instructions Manual.

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the DeFelsko PosiTector Thickness Gauge 200-C1 Standard is mapped out in the brochure below.
