KEY FEATURES

• Comprehensive air balancing master package including the ABM-200 meter, canvas hoods, and low-flow kit
• Simultaneously tracks air volume flow, velocity, relative humidity, and ambient temperature parameters
• Large fabric expansion hood seamlessly adapts the monitoring base to cover grilles up to 24″ x 24″
• Smart wireless integration pairs natively with mobile devices to broadcast real-time data logs
• Integrated vortex air straightener neutralizes multi-directional air vectors for stable readings
• Automated documentation compiles personalized, professional compliance reports directly on the app
• Low-volume reducer plate accessory delivers exceptional tracking accuracy down to a minimal 7 CFM

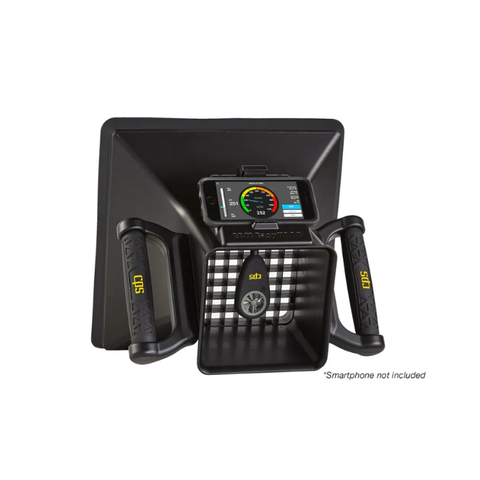

The CPS Airflow Capture Hood Kit ABM-HOOD-200 redefines modern commercial and residential duct system balancing by replacing heavy, multi-kilogram diagnostic equipment with an ultra-portable, 2.15 kg system canvas setup. Measuring volume flow accurately at diffuse registers is notoriously difficult due to turbulent swirls; by feeding air streams through the built-in vortex grid matrix, the ABM-HOOD-200 guarantees flawless cross-sectional precision. The smart testing platform supports independent standard configurations for 12" x 12" diffusers alongside broad-reach extended testing profiles up to 24" x 24", making it an invaluable diagnostic tool for HVAC commissioning engineers and energy auditors alike.

ADDITIONAL FEATURES

• Calibrated and certified at an official AMCA Certified Laboratory following strict ANSI/AMCA standard methods
• Durable, impact-resistant protective control box housing ensures excellent long-term field survivability
• Flexible cross-platform compatibility works natively with both the ABM-200 and legacy ABM-100 modules
• Extended temporary low-test mode handles minimal air flow volumes from 7 up to 100 CFM safely
• Incredible battery management framework yields over 500 hours of active logging on a single coin cell
• Smart Auto Power Off (APO) protocol engages 30 seconds after app closure to preserve cell capacity
• Supplied complete with a premium custom-padded carrying bag to keep all fabric screens and probes organized

APPLICATIONS

• Commercial HVAC duct system balancing and commissioning
• Residential ventilation register airflow verification
• Energy auditing and compliance documentation
• Cleanroom air volume testing and environmental validation
• System commissioning diagnostics for supply and return registers
• High-precision diffuser air pattern tracking
• Airflow measurement for maintenance, retrofit, and performance checks

PRODUCT PACKAGE INCLUDES

• 1 x CPS ABM-200 Smartphone Airflow & Environmental Meter Module
• 1 x Standard 12″ x 12″ Airflow Capture Hood Base with Control Box
• 1 x 24″ x 24″ Canvas Fabric Expansion Hood Assembly
• 1 x Low-Airflow Reducer Plate Adapter
• 1 x Premium Custom-Padded Storage Carry Case

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the CPS Airflow Capture Hood Kit ABM-HOOD-200 is outlined in the brochure below.

DOWNLOAD
