Blue Polyglass 12 x 52" (87.3 L) FRP Pressure Tank, with 2.5" top opening and HDPE Liner
Blue Polyglass 12 x 52" (87.3 L) FRP Pressure Tank, with 2.5" top opening and HDPE Liner
The Blue polyglass pressure tanks are made of high performance FRP with HDPE liner. The robust pressure tank design incorporates a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities.
Vendor: Wave Cyber
Unavailable
KEY FEATURES
- High quality, versatile and durable pressure tank
- Suitable for residential and light commercial applications
- Incorporates durable HDPE liner
The Blue polyglass pressure tanks are made of high performance composite material (FRP - fibreglass reinforced plastic filament winding outer shell) with HDPE liner. The robust pressure tank design incorporates a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities. All pressure tanks in this range are NSF, PED and KTW certified.
ADDITIONAL FEATURES
- Durable HDPE liner maximises product life
- Standard base
APPLICATIONS
- Suitable for water filtration and softening related applications, in both residential and light commercial settings
PRODUCT PACKAGE INCLUDES
- Blue Polyglass 12 x 52" (87.3 L) FRP Pressure Tank, with 2.5" top opening and HDPE Liner

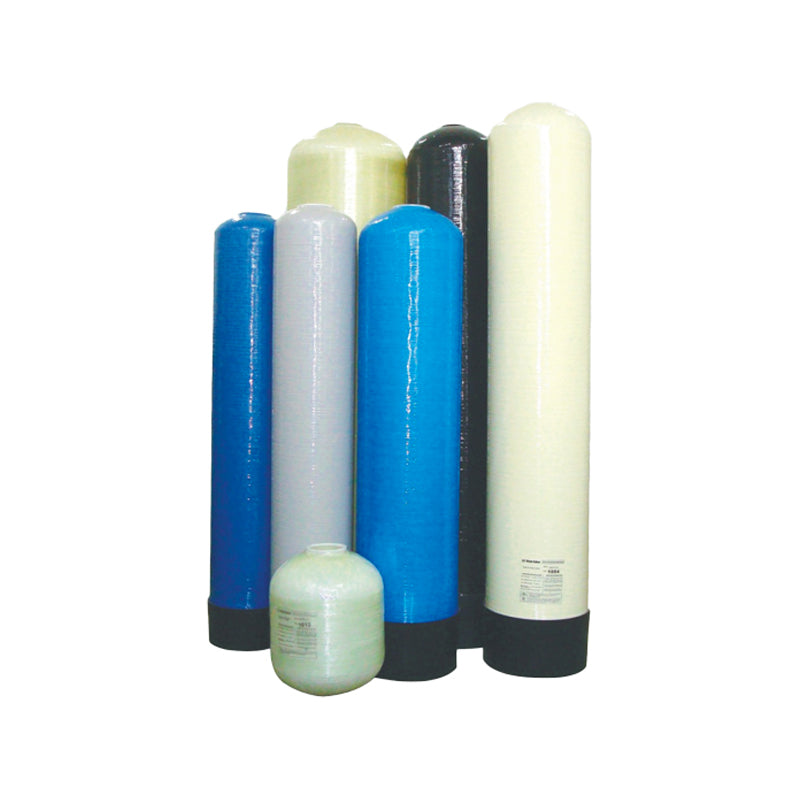

- It should be noted that the photos relating to this item are provided for illustrative purposes only. The specific configuration, colour and inclusions will vary by model, as described in the specifications.
SPECIFICATIONS
| Brand | Wave Cyber |
| Model | WAV-T1252PBS20 |
| Gross Dimensions | |
| Weight | 9.04 kg, approximately |
| Height |
1,322 mm |
| Width - Vessel | 310 mm |
| Width - Base | 310.5 mm |
| Opening - Top | 2.5" - 8NPSM |
| Volume |
87.3 L capacity |
| Material - Outer Shell | FRP |
| Material - Inner Liner | HDPE |
| Operating Pressure | 150 psi (10.5 bar) max |
| Operating Temperature | 49 °C (max) |
| Colour | Blue |
| Detailed Specifications | Refer to the attached Data Sheet |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT DATA SHEET
Detailed information about the Blue Polyglass 12 x 52" (87.3 L) FRP Pressure Tank, is outlined in the Blue Polyglass 12 x 52" (87.3 L) FRP Pressure Tank, product data sheet.
