Atlas Copco WEDA S30N Submersible Sludge Pump (800 L/min max flow) - 1 Phase

Atlas Copco WEDA S30N Submersible Sludge Pump (800 L/min max flow) - 1 Phase

Product Code: ACW-WEDA-S30N-1PH

The Atlas Copco WEDA S range of pumps are a high performance submersible sludge pump capable of handling solids, with proven reliability in a wide range of industrial applications, particularly in mining including mine pit dewatering.

$3,860.00 Excl. GST
$4,246.00 Incl. GST
Enquire about availability
Vendor: Atlas Copco

Unavailable

KEY FEATURES
  • Suitable for providing industrial dewatering in a range of submerged applications
  • Can handle dirty water including dense sludge with solids whilst operating reliably
  • Pump design ensures maximum performance and improved motor cooling



The Atlas Copco WEDA S30N Submersible Pump is a high performance sludge pump capable of handling solids, with proven reliability as a result of the unique construction of the WEDA pumps providing high corrosion resistance in a wide range of applications, particularly in mining including mine pit dewatering.

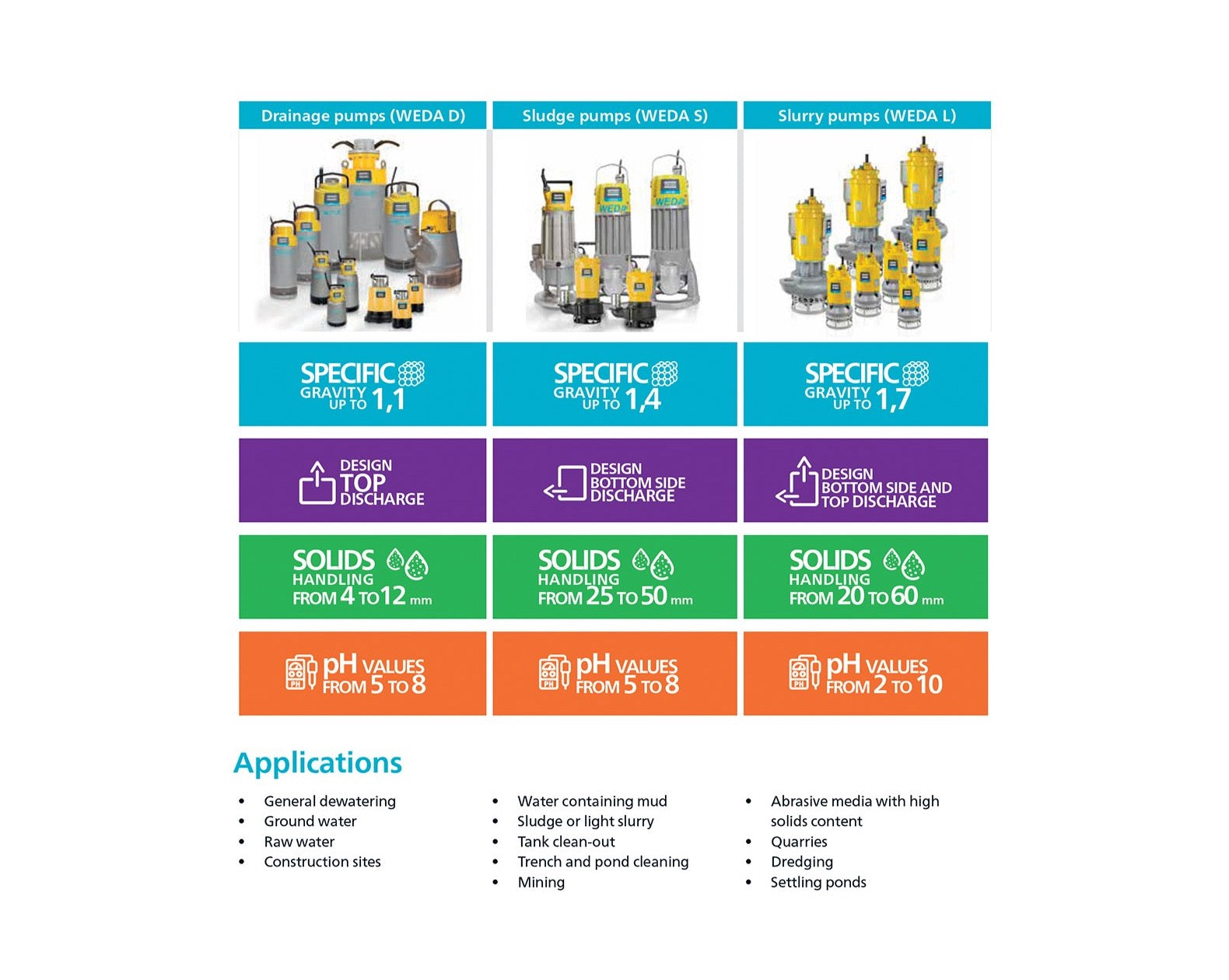

Given the dewatering needs vary with location and application, accordingly the Atlas Copco range of WEDA submersible pumps have been particularly developed for specific drainage (D), sludge (S) and slurry (L) applications.

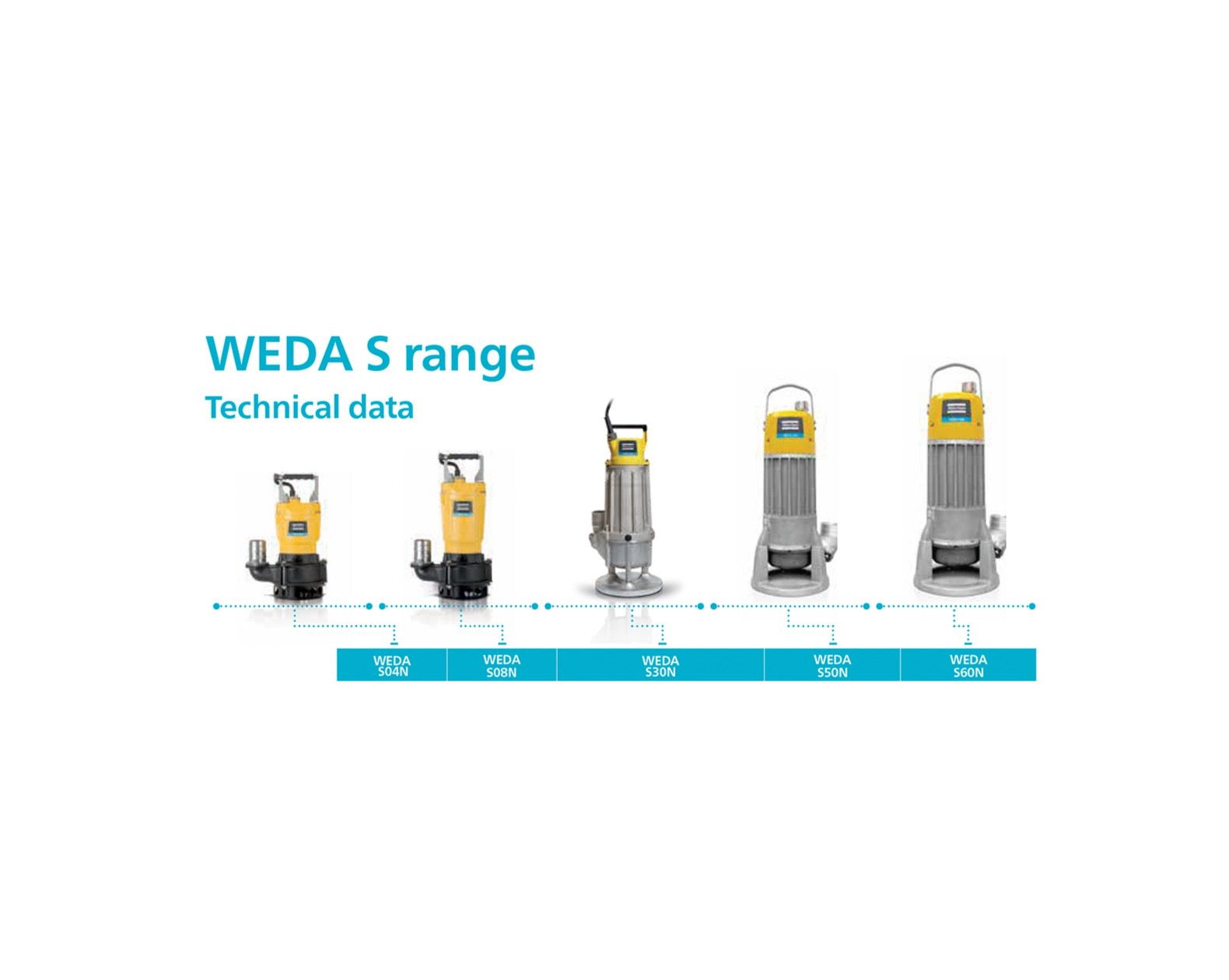

This WEDA submersible pump is a WEDA S Series model.

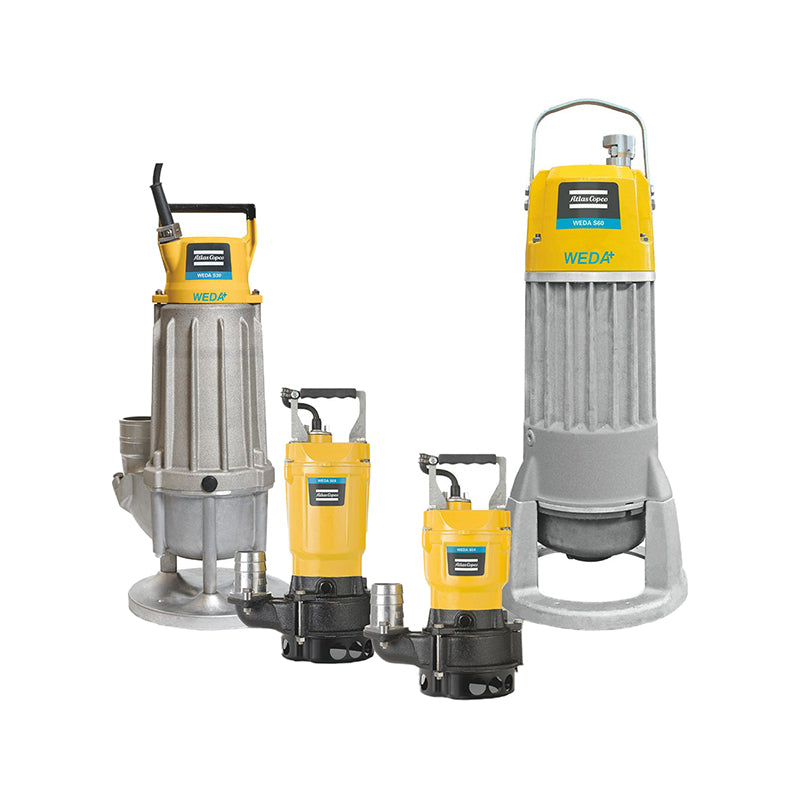

About WEDA Pumps

WEDA electric submersible pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. They provide the performance, reliability and ease of use you need. WEDA pumps feature a built-in starter and motor protection system along with optional automatic level control. Adjustable wear-resistant rubber diffusors and hardened high-chrome impellers ensure durability in tough environments. At Atlas Copco, we understand pumps, their applications and, most importantly, the people using them. We have a complete range of high-quality and lightweight electric submersible pumps designed specifically for drainage, sludge and slurry pumping applications and available in global voltages. WEDA pumps are made for durability. The unique sealing system and modular design make them among the most flexible pumps on the market. Easy to use and maintain, WEDA pumps promise optimal performance. The WEDA seal system is designed to provide the optimum maintenance solution and can be easily fitted at the job site.



ADDITIONAL FEATURES
  • The unique construction of the WEDA pumps provides high corrosion resistance in a wide range of applications.
  • Base of the pump ensures stability while enabling passage of large solids
  • High-chrome (55HRC) impellers provide higher wear resistance



APPLICATIONS

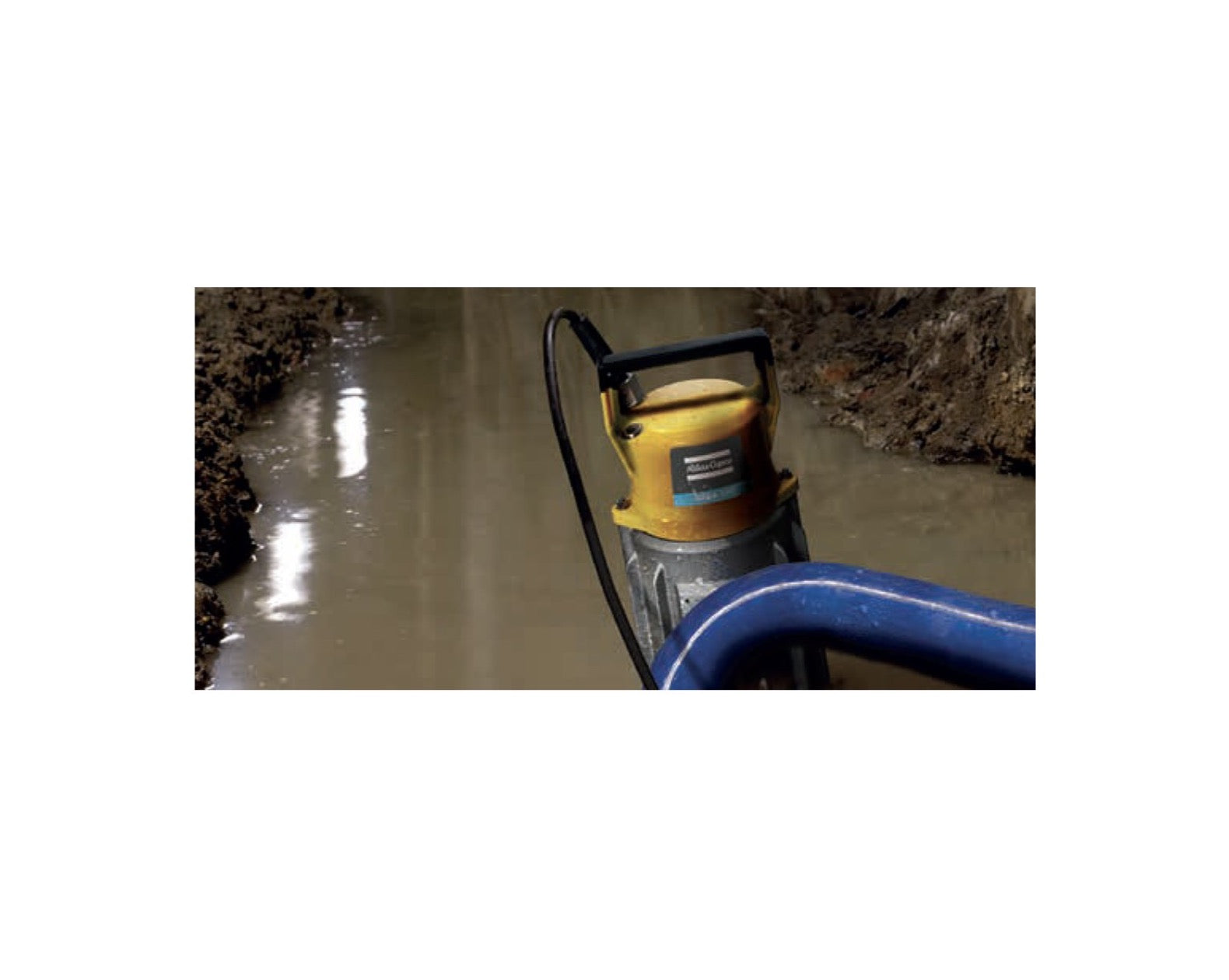

The Atlas Copco WEDA submersible pump range is suitable for range of dewatering related applications including:

  • Water containing mud
  • Sludge or light slurry
  • Tank clean-out
  • Trench and pond cleaning
  • Mine dewatering
  • Mining


PRODUCT PACKAGE INCLUDES
  • Atlas Copco WEDA S30N Submersible Sludge Pump



    Brand Atlas Copco
    Model WEDA Submersible Sludge Pump (WEDA S30N)
    Dimensions
    Weight  25 kg
    Length 620 mm
    Width 326 mm
    Depth 250 mm
    Maximum Flow Rate 800 L/min
    Maximum Head 13.0 m
    Float Switch Yes


    Power Rating - Max Input 2.10 kW (1 phase, 50 Hz Power Supply)
    Electrical Plug Type 3 Pin, 15 A, IP66 Plug
    Electrical Cable Length 20 m
    Maximum Solids Handling 50 mm
    Specific Gravity of Media Up to 1.4
    Operating pH Range 5 - 8
    Discharge Connection 3" Camlock



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Atlas Copco WEDA S30N Submersible Sludge Pump is outlined in the WEDA product range brochure.

    DOWNLOAD
    KEY FEATURES
    • Suitable for providing industrial dewatering in a range of submerged applications
    • Can handle dirty water including dense sludge with solids whilst operating reliably
    • Pump design ensures maximum performance and improved motor cooling



    The Atlas Copco WEDA S30N Submersible Pump is a high performance sludge pump capable of handling solids, with proven reliability as a result of the unique construction of the WEDA pumps providing high corrosion resistance in a wide range of applications, particularly in mining including mine pit dewatering.

    Given the dewatering needs vary with location and application, accordingly the Atlas Copco range of WEDA submersible pumps have been particularly developed for specific drainage (D), sludge (S) and slurry (L) applications.

    This WEDA submersible pump is a WEDA S Series model.



    About WEDA Pumps

    WEDA electric submersible pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. They provide the performance, reliability and ease of use you need. WEDA pumps feature a built-in starter and motor protection system along with optional automatic level control. Adjustable wear-resistant rubber diffusors and hardened high-chrome impellers ensure durability in tough environments. At Atlas Copco, we understand pumps, their applications and, most importantly, the people using them. We have a complete range of high-quality and lightweight electric submersible pumps designed specifically for drainage, sludge and slurry pumping applications and available in global voltages. WEDA pumps are made for durability. The unique sealing system and modular design make them among the most flexible pumps on the market. Easy to use and maintain, WEDA pumps promise optimal performance. The WEDA seal system is designed to provide the optimum maintenance solution and can be easily fitted at the job site.



    ADDITIONAL FEATURES
    • The unique construction of the WEDA pumps provides high corrosion resistance in a wide range of applications.
    • Base of the pump ensures stability while enabling passage of large solids
    • High-chrome (55HRC) impellers provide higher wear resistance



    APPLICATIONS

    The Atlas Copco WEDA submersible pump range is suitable for range of dewatering related applications including:

    • Water containing mud
    • Sludge or light slurry
    • Tank clean-out
    • Trench and pond cleaning
    • Mine dewatering
    • Mining


    PRODUCT PACKAGE INCLUDES
    • Atlas Copco WEDA S30N Submersible Sludge Pump



      SPECIFICATIONS
      Brand Atlas Copco
      Model WEDA Submersible Sludge Pump (WEDA S30N)
      Dimensions
      Weight  25 kg
      Length 620 mm
      Width 326 mm
      Depth 250 mm
      Maximum Flow Rate 800 L/min
      Maximum Head 13.0 m
      Float Switch Yes


      Power Rating - Max Input 2.10 kW (1 phase, 50 Hz Power Supply)
      Electrical Plug Type 3 Pin, 15 A, IP66 Plug
      Electrical Cable Length 20 m
      Maximum Solids Handling 50 mm
      Specific Gravity of Media Up to 1.4
      Operating pH Range 5 - 8
      Discharge Connection 3" Camlock



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Atlas Copco WEDA S30N Submersible Sludge Pump is outlined in the WEDA product range brochure.

      DOWNLOAD
