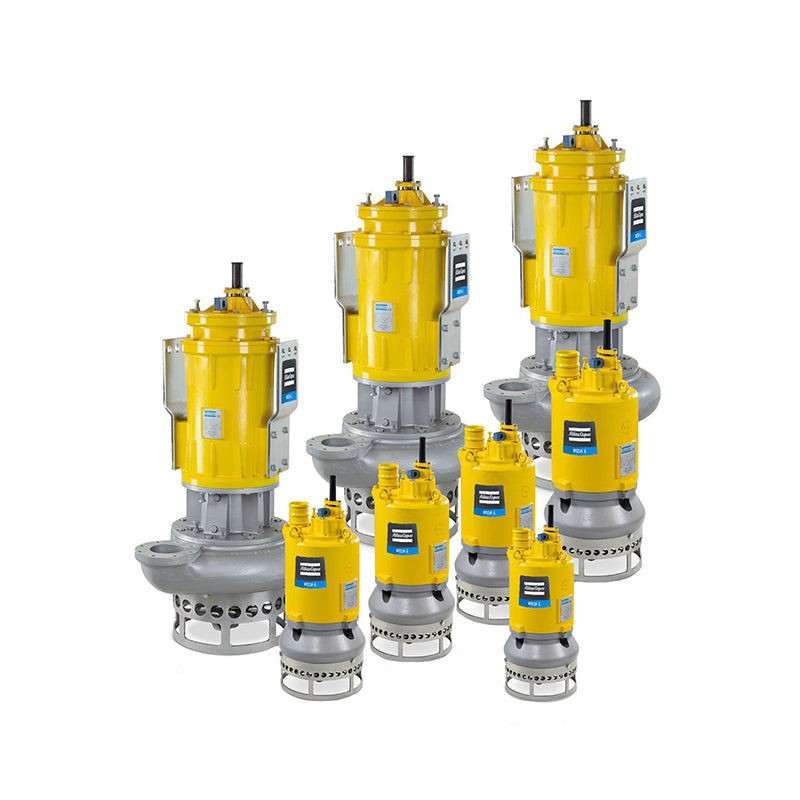

Atlas Copco WEDA L95N Submersible Slurry Pump (4800 L/min max flow)

Atlas Copco WEDA L95N Submersible Slurry Pump (4800 L/min max flow)

Product Code: ACW-WEDA-L95N

The WEDA L Range is a high performance submersible slurry pump range capable of handling solids, with proven reliability in a wide range of challenging industrial applications, including environments with abrasive media, particularly in mining including mine dewatering.

$39,088.00 Excl. GST
$42,996.80 Incl. GST
Enquire about availability
Vendor: Atlas Copco

Unavailable

KEY FEATURES
  • Suitable for providing industrial dewatering in extreme pH environments
  • Can handle challenging waste streams including slurries with high solids loading
  • Pump design ensures reliable performance and efficiency



The Atlas Copco WEDA L95N Submersible Pump is a high performance slurry pump specifically designed for pumping dense slurries with high solids loading. The proven performance of the WEDA L Range, is a result of the unique construction of the WEDA pumps providing high corrosion resistance in a wide range of industrial applications, particularly in mining including mine pit dewatering.

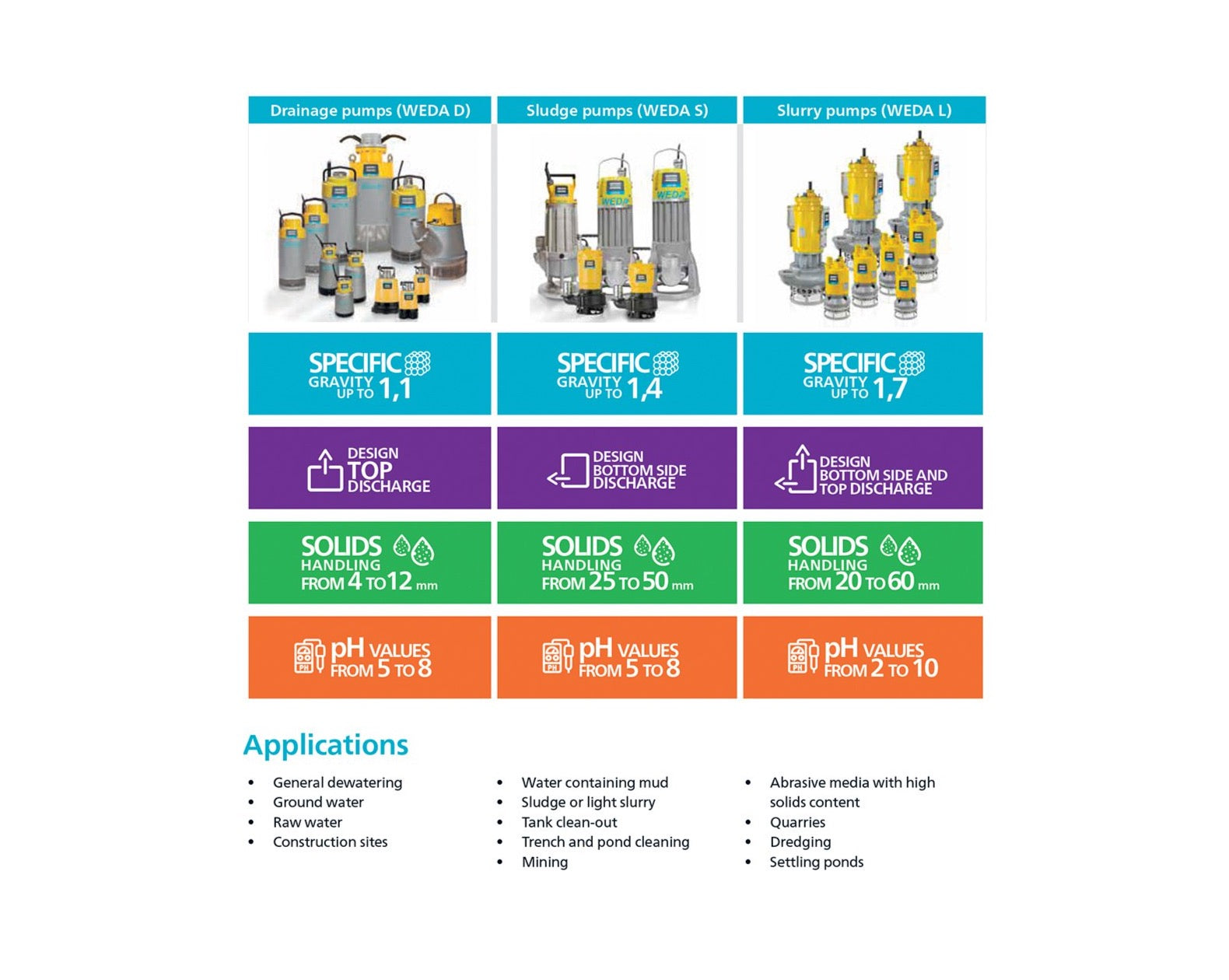

Given the dewatering needs vary with location and application, accordingly the Atlas Copco range of WEDA submersible pumps have been particularly developed for specific drainage (D), sludge (S) and slurry (L) applications.

This WEDA submersible pump is a WEDA L Series model.



About WEDA Pumps

WEDA electric submersible pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. They provide the performance, reliability and ease of use you need. WEDA pumps feature a built-in starter and motor protection system along with optional automatic level control. Adjustable wear-resistant rubber diffusors and hardened high-chrome impellers ensure durability in tough environments. At Atlas Copco, we understand pumps, their applications and, most importantly, the people using them. We have a complete range of high-quality and lightweight electric submersible pumps designed specifically for drainage, sludge and slurry pumping applications and available in global voltages. WEDA pumps are made for durability. The unique sealing system and modular design make them among the most flexible pumps on the market. Easy to use and maintain, WEDA pumps promise optimal performance. The WEDA seal system is designed to provide the optimum maintenance solution and can be easily fitted at the job site.

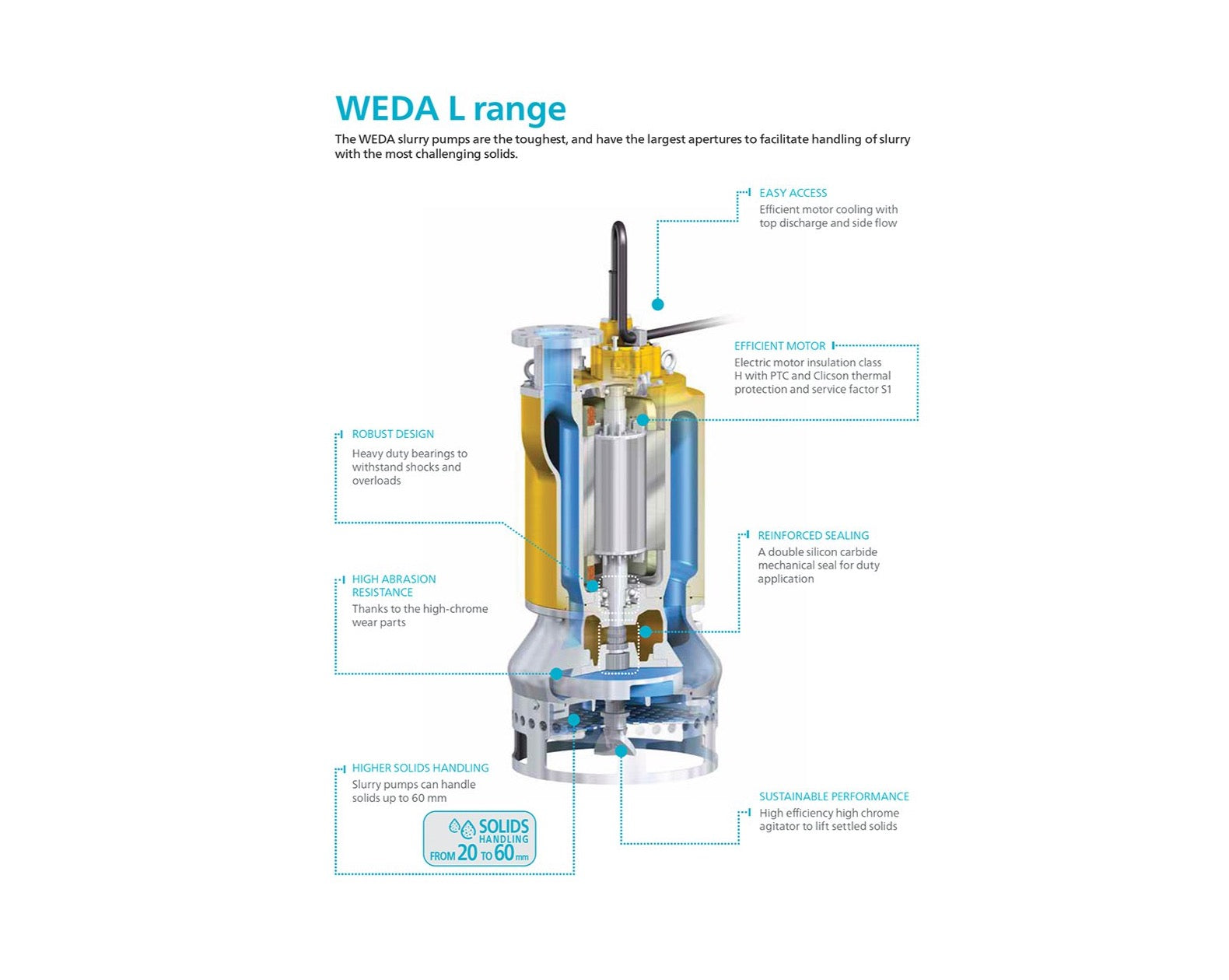

ADDITIONAL FEATURES
  • The unique construction of the WEDA pumps provides high corrosion resistance in a wide range of applications.
  • Heavy duty bearings to withstand shocks and overloads
  • Efficient motor cooling with top discharge and side flow
  • Electric motor insulation class H with PTC and Clicson thermal protection and service factor S1
  • A double silicon carbide mechanical seal for duty application
  • High efficiency high chrome agitator to lift settled solids



APPLICATIONS

The Atlas Copco WEDA submersible slurry pump range is suitable for range of dewatering related applications including:

  • Abrasive media with high solids content
  • Quarries
  • Dredging
  • Settling Ponds
  • Tailings Ponds
  • Mine dewatering
  • Mining


PRODUCT PACKAGE INCLUDES
  • Atlas Copco WEDA L95N Submersible Slurry Pump



    Brand Atlas Copco
    Model WEDA Submersible Slurry Pump (WEDA L95N)
    Dimensions
    Weight  750 kg
    Length 1605 mm
    Width 935 mm
    Depth 546 mm
    Maximum Flow Rate 4800 L/min
    Maximum Head 47.0 m
    Float Switch No


    Power Rating - Max Input 40.00 kW (3 phase, 50 Hz Power Supply)
    Electrical Plug Type -
    Electrical Cable Length 20 m
    Maximum Solids Handling 35 mm
    Specific Gravity of Media Up to 1.7
    Operating pH Range 2 - 10
    Discharge Connection 4" Hose Tail



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Atlas Copco WEDA L95N Submersible Slurry Pump is outlined in the WEDA product range brochure.

    DOWNLOAD
    KEY FEATURES
    • Suitable for providing industrial dewatering in extreme pH environments
    • Can handle challenging waste streams including slurries with high solids loading
    • Pump design ensures reliable performance and efficiency



    The Atlas Copco WEDA L95N Submersible Pump is a high performance slurry pump specifically designed for pumping dense slurries with high solids loading. The proven performance of the WEDA L Range, is a result of the unique construction of the WEDA pumps providing high corrosion resistance in a wide range of industrial applications, particularly in mining including mine pit dewatering.

    Given the dewatering needs vary with location and application, accordingly the Atlas Copco range of WEDA submersible pumps have been particularly developed for specific drainage (D), sludge (S) and slurry (L) applications.

    This WEDA submersible pump is a WEDA L Series model.



    About WEDA Pumps

    WEDA electric submersible pumps and accessories are designed for an extensive range of dewatering applications, across multiple industries. They provide the performance, reliability and ease of use you need. WEDA pumps feature a built-in starter and motor protection system along with optional automatic level control. Adjustable wear-resistant rubber diffusors and hardened high-chrome impellers ensure durability in tough environments. At Atlas Copco, we understand pumps, their applications and, most importantly, the people using them. We have a complete range of high-quality and lightweight electric submersible pumps designed specifically for drainage, sludge and slurry pumping applications and available in global voltages. WEDA pumps are made for durability. The unique sealing system and modular design make them among the most flexible pumps on the market. Easy to use and maintain, WEDA pumps promise optimal performance. The WEDA seal system is designed to provide the optimum maintenance solution and can be easily fitted at the job site.



    ADDITIONAL FEATURES
    • The unique construction of the WEDA pumps provides high corrosion resistance in a wide range of applications.
    • Heavy duty bearings to withstand shocks and overloads
    • Efficient motor cooling with top discharge and side flow
    • Electric motor insulation class H with PTC and Clicson thermal protection and service factor S1
    • A double silicon carbide mechanical seal for duty application
    • High efficiency high chrome agitator to lift settled solids



    APPLICATIONS

    The Atlas Copco WEDA submersible slurry pump range is suitable for range of dewatering related applications including:

    • Abrasive media with high solids content
    • Quarries
    • Dredging
    • Settling Ponds
    • Tailings Ponds
    • Mine dewatering
    • Mining


    PRODUCT PACKAGE INCLUDES
    • Atlas Copco WEDA L95N Submersible Slurry Pump



      SPECIFICATIONS
      Brand Atlas Copco
      Model WEDA Submersible Slurry Pump (WEDA L95N)
      Dimensions
      Weight  750 kg
      Length 1605 mm
      Width 935 mm
      Depth 546 mm
      Maximum Flow Rate 4800 L/min
      Maximum Head 47.0 m
      Float Switch No


      Power Rating - Max Input 40.00 kW (3 phase, 50 Hz Power Supply)
      Electrical Plug Type -
      Electrical Cable Length 20 m
      Maximum Solids Handling 35 mm
      Specific Gravity of Media Up to 1.7
      Operating pH Range 2 - 10
      Discharge Connection 4" Hose Tail



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Atlas Copco WEDA L95N Submersible Slurry Pump is outlined in the WEDA product range brochure.

      DOWNLOAD
