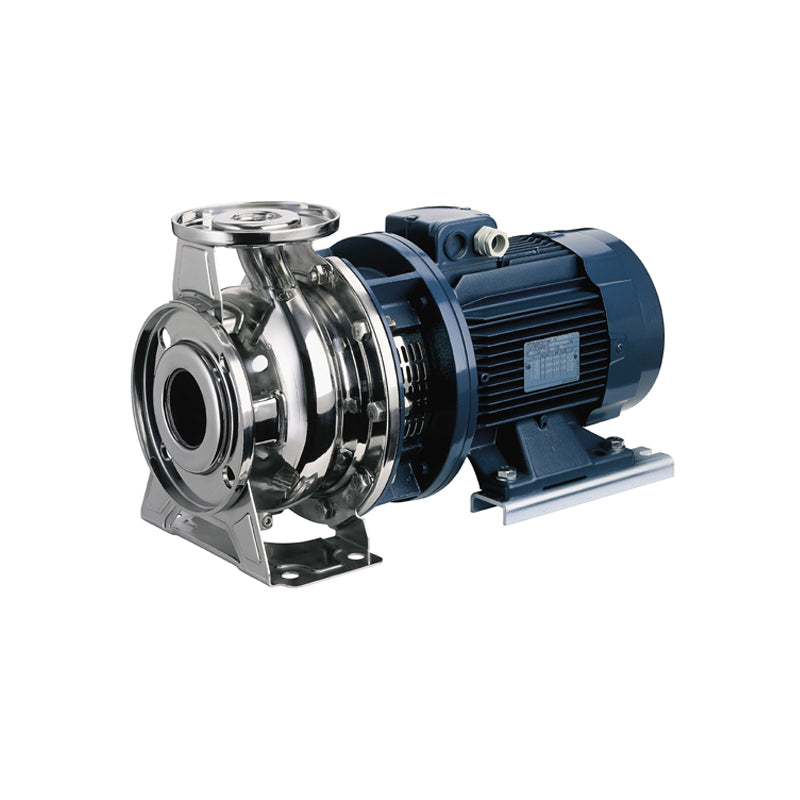

Ebara 3LS 32mm 5.5kW 2 Pole, Stub Shaft Motor Pump, in 316L SS ( Kit Only )
Ebara 3LS 32mm 5.5kW 2 Pole, Stub Shaft Motor Pump, in 316L SS ( Kit Only )
Ebara stainless steel pumps feature a unique one-piece volute casing produced using an advanced computer-controlled Plasma stamping system that ensures total quality control during manufacture.The smooth surfaces of stamped stainless steel result in consistent high-standard products, superior quality, high efficiency.
Vendor: Ebara
Unavailable
KEY FEATURES
- Advanced computer controlled Plasma stamping system
- Consistent high standard products, of superior quality and high efficiency
- All 316 stainless steel construction
These stainless steel pumps feature a unique one piece volute casing that are produced using an advanced computer controlled Plasma stamping system that ensures total quality control during manufacture. With the smooth surfaces of stamped stainless steel, this results in consistent high standard products, of superior quality and high efficiency.
The back pull-out construction permits the disassembly and overhaul of the impeller, shaft and bearings without removal of the suction or discharge piping, or pump casing.
The centre line discharge and foot support under the casing ensure maximum resistance to misalignment and distortion from pipe loads.
ADDITIONAL FEATURES
- All 316 stainless steel construction
- Stub shaft design
- SiC/SiC/Viton mechanical seal
- Maximum Liquid temperature 110 °C
APPLICATIONS
- Industrial, commercial and agricultural applications
- Water supply
- Irrigation
- Cooling towers
- Booster sets
- Washing plants or machines
- Air conditioning systems
- Heat exchangers
- For the pumping or boosting of water in general
PRODUCT PACKAGE INCLUDES
-
Ebara 3LS 5.5kW 2 Pole, Stub Shaft Motor Pump, in 316L SS ( Kit Only )
SPECIFICATIONS
| Brand | Ebara |
| Model | EBA-3LSF-32-200-5-5 |
| Dimensions | |
| Weight | 26 kg |
| Length | 43 cm |
| Width | 39 cm |
| Depth | 43 cm |
| Minimum Power |
5.5kW |
| Frame | 132 |
| Mount |
F & FL |
| Discharge/Suction | 32 mm / 50 mm |
| Max. working pressure: | 10 Bar |
| Liquid temp: | -10 °C to +110 °C |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about the Ebara 3LS Stub Shaft Pump range is outlined in the brochure.
DOWNLOAD
Technical information about the Ebara 3LS Stub Shaft Pump range is outlined in the following Technical data sheet.
DOWNLOAD
