Waterco Commandomatic TCF Series C50 Cartridge Filter Housing, Top Loading

Waterco Commandomatic TCF Series C50 Cartridge Filter Housing, Top Loading
All images are provided for illustrative purposes only, as the appearance of actual item
may vary from the images

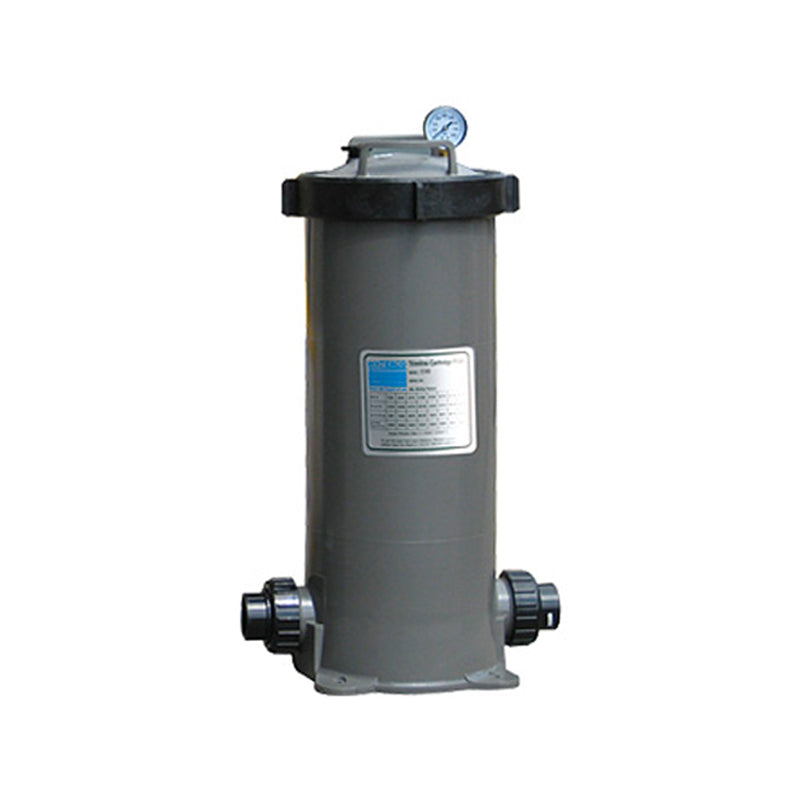

Waterco Commandomatic TCF Series C50 Cartridge Filter Housing, Top Loading

Product Code: WTC-2150503
KEY FEATURES
  • Effectively filters out suspended solids from range of process streams
  • Fabricated from high impact polypropylene to be compatible with a wide range of fluids
  • Designed to house either a pleated filter cartridge or a granular media cartridge



The Waterco TCF Commandomatic Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from a range of process streams in water treatment related applications. The Trimline cartridge filters utilise a specially treated synthetic fabric which is pleated into a cartridge. Cartridge filters are ideal for applications where backwashing may not be practical.

The TCF series housings are designed for top loading with an easy locking ring system requiring no additional tools for simple cartridge removal and replacement. The TCF series housings are fabricated from high impact polypropylene to be compatible with a wide range of fluids.

Rugged Construction - Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.



ADDITIONAL FEATURES
  • One piece mould construction
  • Easy locking ring system
  • Easy to read pressure gauge

APPLICATIONS
  • Commonly used in a range of residential, commercial and industrial conventional water treatment applications due to the excellent chemical resistance of the housing

PRODUCT PACKAGE INCLUDES
  • Waterco Commandomatic TCF Series C50 Cartridge Filter Housing with pressure gauge
  • Cartridges filters are not included (available separately)



    $POA
    In Stock - Enquire about latest price
    Vendor: Waterco

    Available

    KEY FEATURES
    • Effectively filters out suspended solids from range of process streams
    • Fabricated from high impact polypropylene to be compatible with a wide range of fluids
    • Designed to house either a pleated filter cartridge or a granular media cartridge



    The Waterco TCF Commandomatic Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from a range of process streams in water treatment related applications. The Trimline cartridge filters utilise a specially treated synthetic fabric which is pleated into a cartridge. Cartridge filters are ideal for applications where backwashing may not be practical.

    The TCF series housings are designed for top loading with an easy locking ring system requiring no additional tools for simple cartridge removal and replacement. The TCF series housings are fabricated from high impact polypropylene to be compatible with a wide range of fluids.

    Rugged Construction - Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.



    ADDITIONAL FEATURES
    • One piece mould construction
    • Easy locking ring system
    • Easy to read pressure gauge

    APPLICATIONS
    • Commonly used in a range of residential, commercial and industrial conventional water treatment applications due to the excellent chemical resistance of the housing

    PRODUCT PACKAGE INCLUDES
    • Waterco Commandomatic TCF Series C50 Cartridge Filter Housing with pressure gauge
    • Cartridges filters are not included (available separately)



      SPECIFICATIONS
      Brand Waterco
      Model  Commandomatic TCF Series C50 (WTC-2150503)
      Weight  11 kg
      Length 720 mm
      Width
      		 384 mm
      Depth 259 mm
      Filter Type
      		 High-Impact Polypropylene Housing
      Cartridge Type Suitable for use with C50 (185 mm x 490 mm) large capacity Trimline Cartridges, including WTC-620411 (not included with housing)
      Operating Temperature 50 °C (max)
      Operating Pressure 50 psi
      Flow Rate - max 190 L/min (11.4 m3/hr)
      Inlet 40 mm half union
      Outlet 40 mm half union
      Additional Details Refer to the Product Data Sheet



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES



      PRODUCT INFORMATION SHEET (PIS)

      Technical details regarding the Waterco Commandomatic TCF Series C50 Cartridge Filter Housing, are outlined in the product information sheet (PIS).

      DOWNLOAD


      USER MANUAL

      Additional information about operating the Waterco Commandomatic TCF Series C50 Cartridge Filter Housing is outlined in the instruction manual.

      DOWNLOAD
