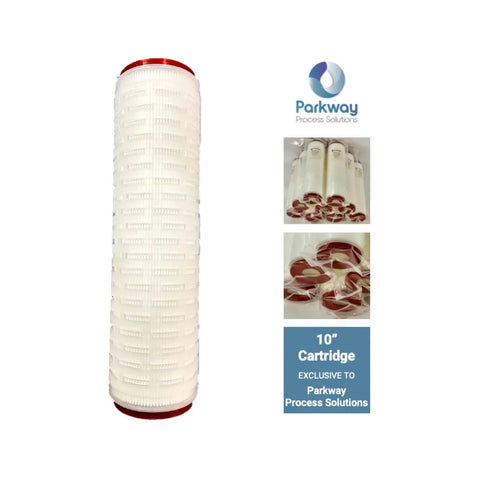

PPS 10" PolyPure PP Pleated Filter Cartridge, Standard 2.5” Diameter, DOE, 1 micron (absolute)
PPS 10" PolyPure PP Pleated Filter Cartridge, Standard 2.5” Diameter, DOE, 1 micron (absolute)
Premium filter cartridge, has absolute membrane pore size rating, ensuring reliable removal/rejection of particulate matter, including range of microorganisms. Suitable for food and beverage, including wine production, pharmaceutical products & cosmetic manufacture.
Vendor: PPS
Available
KEY FEATURES
- Standard diameter (2.5") filter cartridge suits standard cartridge housings
- 100% polypropylene construction offers wide range of chemical compatibility
- Absolute retention rating of 1 μm ensures high performance in specialty applications
The PPS PolyPure PP pleated filter cartridges are a specialty cartridge with an absolute (as opposed to nominal) pore size rating, which ensures highly reliable (99.98% rejection efficiency) removal/rejection of particulate matter, including range of microorganisms, based on the specific micron rating.
The PPS PolyPure PP pleated filter cartridges are specially designed to provide high particle removal efficiency and superior flow rates at an economical cost. Common applications include food and beverage related including wine production, chemical and pharmaceutical products and cosmetic manufacture, amongst many others.
The PPS PolyPure PP pleated filter cartridges are made of FDA compliant pure pleated Polypropylene multi-layer media, and are not affected by pressure drop fluctuations during operation, resulting in consistent high filter performance.
ADDITIONAL FEATURES
- Absolute retention based on specific micron (with >99.98% rejection efficiency)
- 0.52 m2 of media surface area per ten" length for optimal performance
- Reliable microbiological control with absolute rated for a precise particle reduction
- Cost effective absolute filtration, as cartridge is backwashable
- 100% polypropylene construction offers wide range of chemical compatibility
- Rigid, moulded cage protects pleated media and strengthens structural stability
- Made of FDA compliant pure pleated Polypropylene multi-layer media
APPLICATIONS
- Commonly used in a range of conventional water treatment systems including in food and beverage, hospitality and light commercial applications, including as a pre-treatment step for reverse osmosis (RO) water treatment plants
- Additional applications include:
- RO Pre/Post Filtration
- Food & Beverage
- DI Water / Ultrapure water
- Bottled Water
- Plating Solutions
- Microelectronics
- Specialty Chemicals
- Process Water
- Water & Wastewater
- Cosmetics
- Pharmaceuticals
PRODUCT PACKAGE INCLUDES
- PPS 10" PolyPure PP Pleated Filter Cartridge, Standard 2.5” Diameter, DOE, 1 micron (absolute)
SPECIFICATIONS
| Brand | PPS PolyPure PP Cartridge Filter |
| SKU | PPS-AB-CRPPA0101000S |
| Weight | 500 g |
| Length | 250 mm (10") |
| Diameter - Outside | 67.8 mm (2.67") |
| Diameter - Inside |
33 mm (1.25") |
| Cartridge End Configuration | DOE (Double open end) to suit standard housing, with silicone sealing on both ends |
| Material of Construction |
Filter Media - High purity (FDACFR21 approved) nano-polypropylene |
| Material of Construction | Inner core and outer cage - Polypropylene |
| Max Operating Temperature | 82 °C |
| Steam Sterilisation | 121 °C for up to 30 minutes |
| Hot Water Sterilisation | 90 °C during regular CIP routine |
| Rejection Efficiency | 99.98% (indicative rejection for given micron rating) |
| Pressure Differential (for changeover) | Refer to data sheet, for max change in pressure, before cartridge change is required |
| Regulatory Compliance | ASTM D6394 SP0112, FDA 21 CFR 177.1655, ISO 10993-Part 1, 5, Regulation (EC) No 1935/2004 |
| Additional Details | Refer to the Product Data Sheet |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Technical details regarding this specialty cartridge is outlined in the following product information sheet (PIS).
