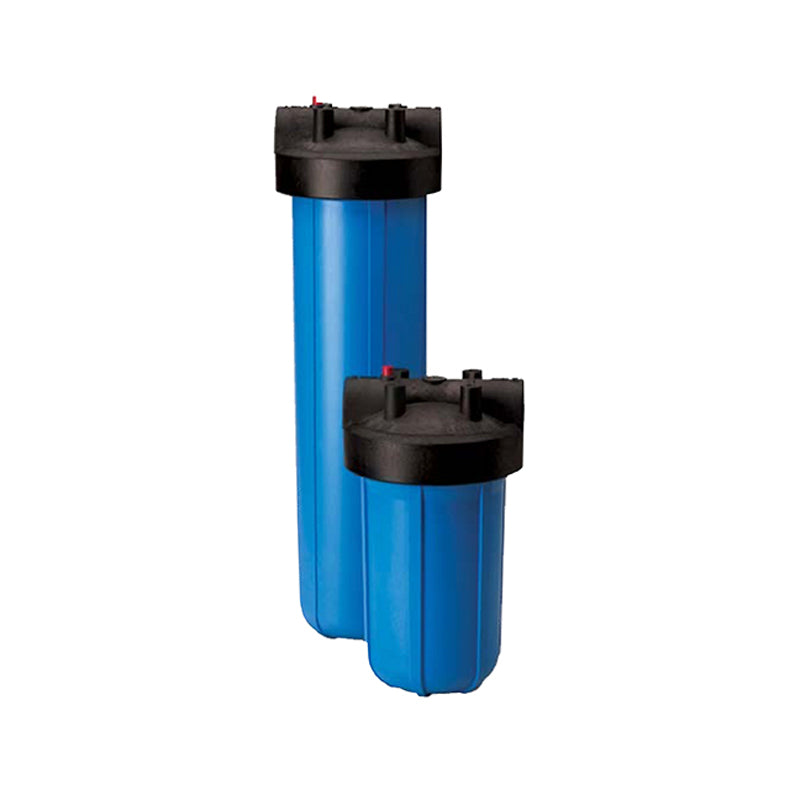

Pentek 20" Large Diameter, Big Blue Filter Housing, High Flow Applications, Pressure Relief, 1-1 1/2" BSP

Pentek 20" Large Diameter, Big Blue Filter Housing, High Flow Applications, Pressure Relief, 1-1 1/2" BSP

Product Code: PEN-150235

The Pentair Big Blue Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.

$158.00 Excl. GST
$173.80 Incl. GST
Enquire about availability
Vendor: Pentek

Unavailable

KEY FEATURES
  • Large capacity housing suitable for high flow applications
  • Outstanding chemical compatibility ensures maximum flexibility
  • Pressure relief/bleed on inlet side of cap



The Pentair Big Blue Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths. The High-Flow Polypropylene (HFPP) cap is available with 3/4", 1" or 1-1/2" BSP inlet and outlet ports. The 1-1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. Big Blue Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.



ADDITIONAL FEATURES
  • Suitable in a broad range of applications
  • Incorporates pressure-relief/bleed button
  • Leak-proof seal

APPLICATIONS
  • Commonly used in a range of large capacity high flow commercial and industrial conventional water treatment applications

PRODUCT PACKAGE INCLUDES
  • Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1-1 1/2" BSP

    Brand Pentek
    Model - Pentek -
    Model - Supplier WH150253
    Weight  xxx g
    Length 590 mm (23.22")
    Diameter 189 mm (7.45")
    Filter Type
    Polypropylene Housing
    Max Operating Temperature 37.8 °C
    Mex Operating Pressure 125 psi (8.6 bar)
    Additional Details Refer to the Product Data Sheet



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT INFORMATION SHEET (PIS)

    Technical details regarding the Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1-1 1/2" BSP, are outlined in the product information sheet (PIS).

    DOWNLOAD

    KEY FEATURES
    • Large capacity housing suitable for high flow applications
    • Outstanding chemical compatibility ensures maximum flexibility
    • Pressure relief/bleed on inlet side of cap



    The Pentair Big Blue Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths. The High-Flow Polypropylene (HFPP) cap is available with 3/4", 1" or 1-1/2" BSP inlet and outlet ports. The 1-1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. Big Blue Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.



    ADDITIONAL FEATURES
    • Suitable in a broad range of applications
    • Incorporates pressure-relief/bleed button
    • Leak-proof seal

    APPLICATIONS
    • Commonly used in a range of large capacity high flow commercial and industrial conventional water treatment applications

    PRODUCT PACKAGE INCLUDES
    • Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1-1 1/2" BSP

      SPECIFICATIONS
      Brand Pentek
      Model - Pentek -
      Model - Supplier WH150253
      Weight  xxx g
      Length 590 mm (23.22")
      Diameter 189 mm (7.45")
      Filter Type
      Polypropylene Housing
      Max Operating Temperature 37.8 °C
      Mex Operating Pressure 125 psi (8.6 bar)
      Additional Details Refer to the Product Data Sheet



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT INFORMATION SHEET (PIS)

      Technical details regarding the Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1-1 1/2" BSP, are outlined in the product information sheet (PIS).

      DOWNLOAD
