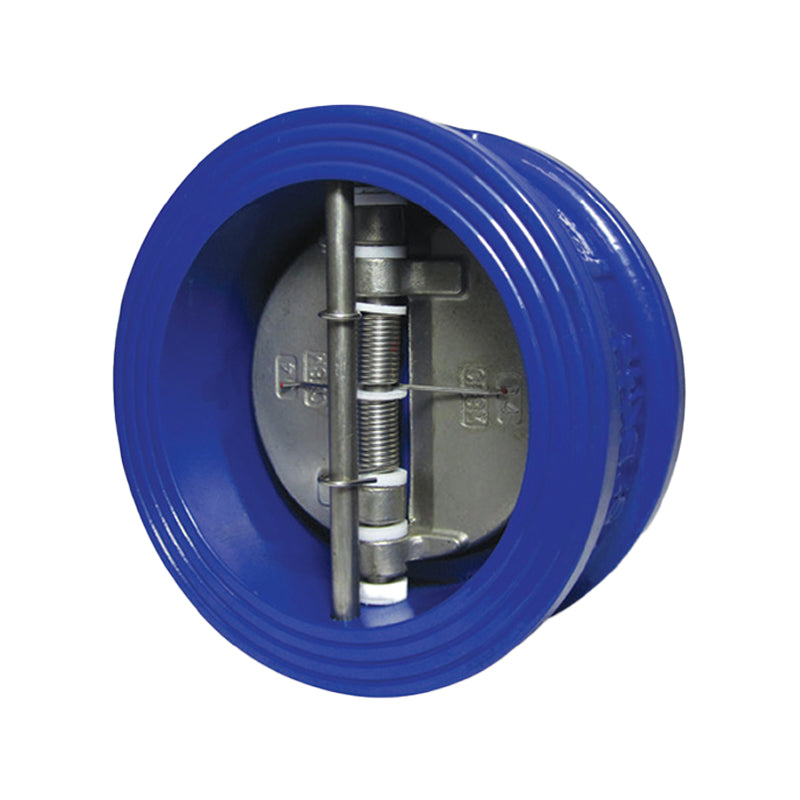

AVFI 50 mm (DN50) Duo Check Valve - Wafer Type
![AVFI 50 mm (DN50) Duo Check Valve - Wafer Type](http://pwnps.com/cdn/shop/products/AVF-AC10-50_4ee649ac-af33-476a-a3b1-04539b4c84e9_large.jpg?v=1652855848)
AVFI 50 mm (DN50) Duo Check Valve - Wafer Type
The 50 mm check valve is commonly utilised in a range of water and wastewater treatment related applications to prevent back flow in piping systems.
Vendor: AVFI
Available
KEY FEATURES
- Practical and durable check (non-return) valve
- Dual springs for quicker activation and even distribution of force
- Standard EPDM Sealing O-Ring
The 50 mm check valve is commonly utilised in a range of water and wastewater treatment related applications to prevent back flow in piping systems.
ADDITIONAL FEATURES
- Upper and lower PTFE thrust bearings
- Long leaf springs prevent rubbing of disc on seat
- Fusion bonded epoxy coating of ductile iron bodied valve
APPLICATIONS
- Water pumping and transfer related applications
PRODUCT PACKAGE INCLUDES
- AVFI 50 mm (DN50) Duo Check Valve - Wafer Type
SPECIFICATIONS
Brand | AVFI |
Weight | 1,250 g |
Length | 96 mm |
Width | 96 mm |
Depth | 43 mm |
Material Specification & Parts List | |
Body | Cast iron (fusion bonded epoxy coated) |
Disc | Stainless steel 316 |
Stem | Stainless steel 316 |
Spring | Stainless steel 316 |
Bearing | PTFE |
Seat | EPDM |
Sealing O-Ring | EPDM |
Hex Screw | Stainless steel 316 |
Eye Bolt | Stainless steel 316 |
Pressure Class | PN10, PN16, PN25 |
Face to face |
DIN3202-K3 |
Pressure Testing | AP1598 |
Working Temperature | -20oC to +100oC |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Additional information about the 50 mm (DN50) Check Valve, is outlined in the AVF-AC10 Check Valve Range, product information sheet (PIS).
